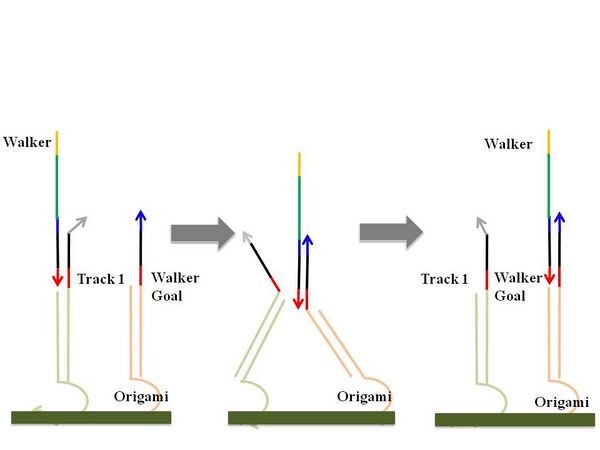

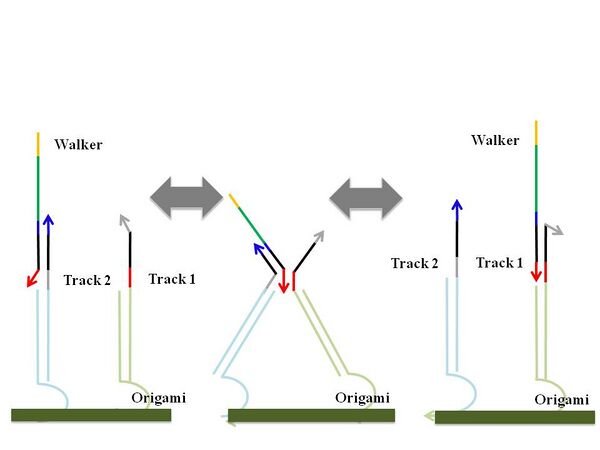

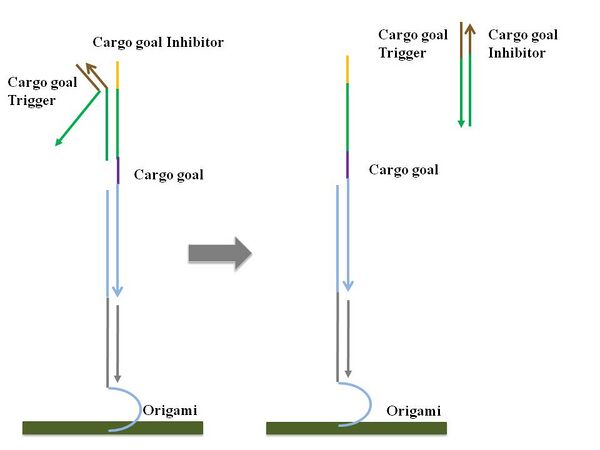

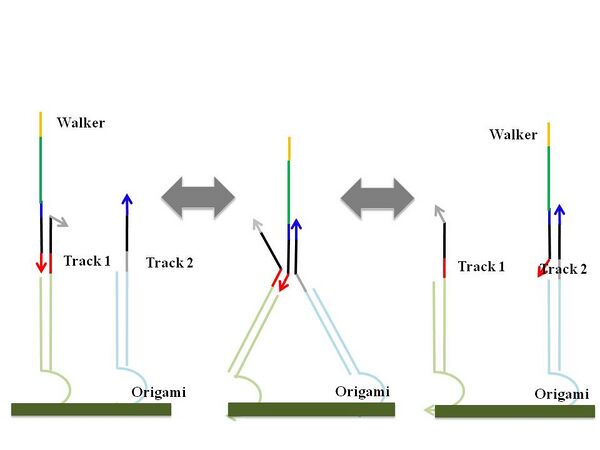

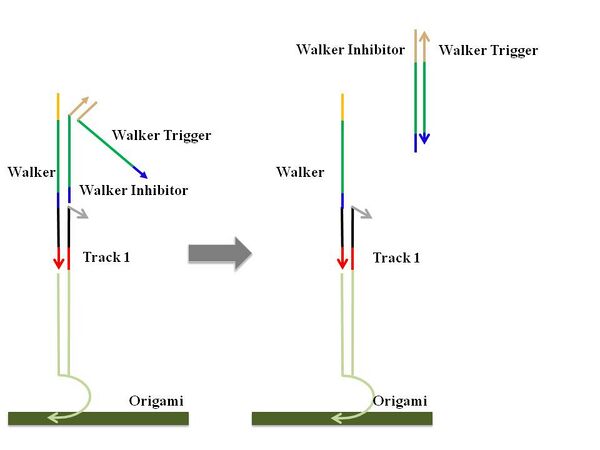

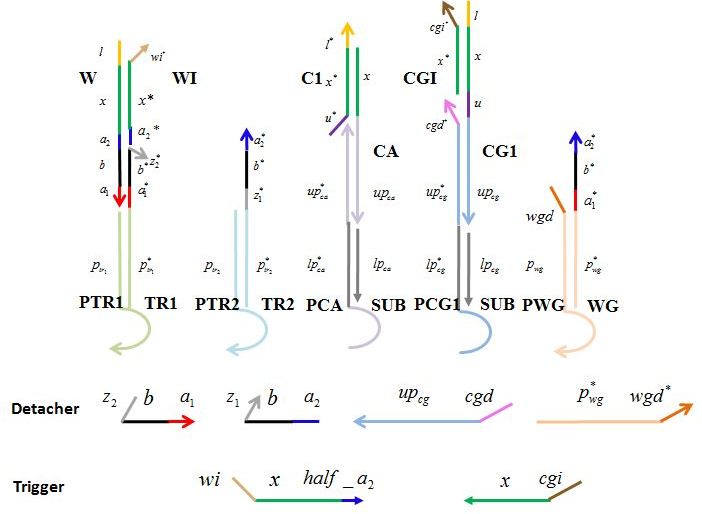

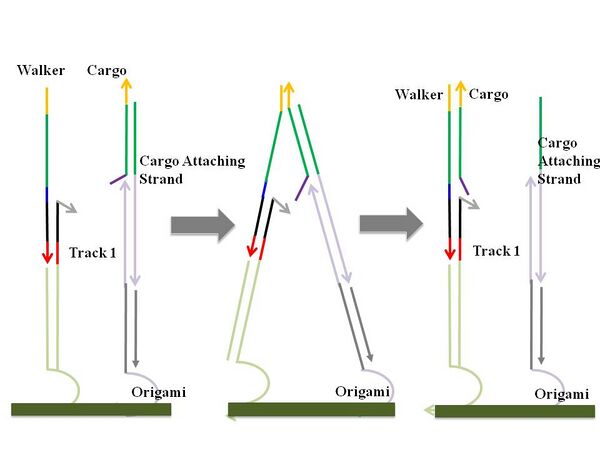

Domain Level Design Overall Domain Design Figure 1. Overall domain level desin Probes are the extended part of staples which are complementary to the bottom part of the strands which should be anchored on the origami surface. Different kinds of probes were designed for each strand. Origami will be annealed with certain staples extended with probes at predetermined positions, and some strands, such as tracks or cargo goals, will be planted on those specific positions using interaction between probe regions. Random Walking Mechanism The backbone of our design is a random walker that moves across the surface of a rectangular origami. The mechanism by which said walker moves is simply strand displacement, whereby the walker contains a toehold on each end of the body, and the track strands on which it walks contains the complement of one of the two toeholds on the walker. This particular arrangement allows the walker to move randomly between track strands without modifying previously visited track segments. The random Walker consists of a body which is a 15nt long domain (black), and two arms each which are 6nt short toeholds (red and blue toehold) at at each end of the body. Tracks on which it walks contain the complement of one of the two toeholds: track 1 with red domain and track 2 with blue domain. When a walker is on track 1, blue toehold is unpaired and searches for a complementary single strand. When track 2 is adjacent, it serves as a complementary sequence to which it can bind. After an blue toehold of the walker binds to an adjacent track 2, which serves as a "distal toehold", the hybridization extends by the rest of track 2. By this branch migration, the whole walker moves from track 1 to track 2. Similarly, a walker can move randomly from one kind of track to another kind. Error creating thumbnail: Unable to save thumbnail to destination Figure 2 (a). Random walking mechanism from track 1 to track 2 Error creating thumbnail: Unable to save thumbnail to destination Figure 2 (b). Random walking mechanism from track 2 to track 1 Cargo Pick-Up Mechanism To accomplish a cargo-reorganizing-task, a walker is extended to have picking up arm which is complementary to cargos (green domain). When walker randomly walks and encounters a cargo molecule, it picks up the cargo by strand displacement using yellow toehold. Error creating thumbnail: Unable to save thumbnail to destination Figure 3. Cargo ick-up mechanism Cargo Drop-Off Mechanism It continues random walking after picking up, and when a walker gets to the cargo goal, cargo is dropped off at the cargo goal using purple toehold, which both cargo and cargo goal share. Therefore, random walking process is purely stochastic, yet a deterministic end result can be achieved by specific recognition between the cargo molecules and their destinations. Error creating thumbnail: Unable to save thumbnail to destination Figure 4. Cargo drop-off mechanism Walking to the Walker Goal Mechanism (for verification of random walking) Another important stand is walker goal. Since walker goal contains both red and blue toeholds which are complementary to the both of the toeholds of the walker, walker stays on the walker goal when it gets there. Walker goal will be used in verifying random walking on origami, and its use will be explained in later section. Error creating thumbnail: Unable to save thumbnail to destination Figure 5. Walking to the walker goal mechanism Triggering Mechanism While the system is under construction, (e.g. track being planted), a walker or cargo goal should be deactivated to prevent undesired random walking or cargo sorting. Walker inhibitor and cargo goal inhibitor are thus designed. Later, walker trigger and cargo goal trigger will rip off the inhibitors by strand displacement using corresponding toeholds. Walker Triggering Error creating thumbnail: Unable to save thumbnail to destination Figure 6. Walker triggering mechanism Cargo Goal Triggering Error creating thumbnail: Unable to save thumbnail to destination Figure 7. Cargo goal triggering mechanism See Also Sequence Design
