Name: Kim
Research and Development
Name: Antonio
Experimental Protocol Planner
Name: Jason
Experimental Protocol Planner
Name: Josh
Machine Engineer
Name: Malcolm
Experimental Protocol Planner
Name: Sairah
Machine Engineer


Initial Machine Testing

SolidWorks mock up of Open PCR machine

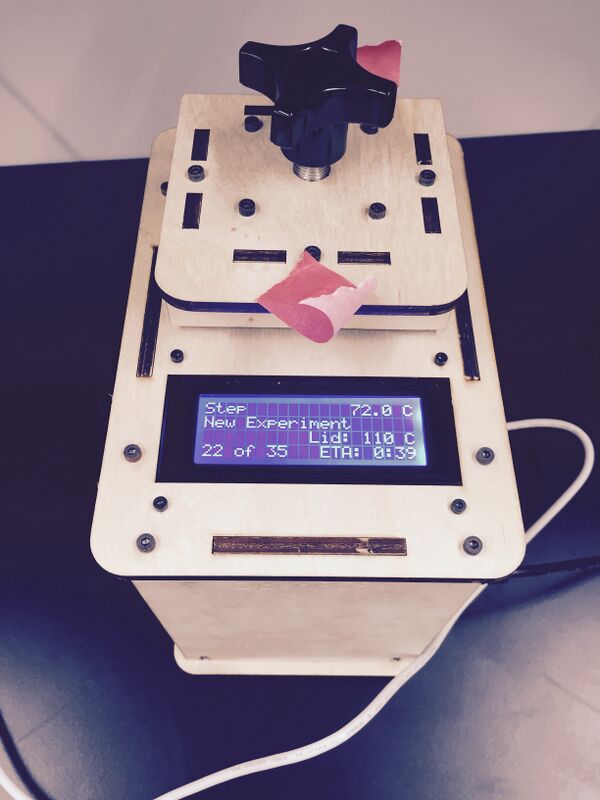

The Original Design

For the lab, we used an Open PCR machine to amplify parts of the DNA through polymerase chain reaction. The OpenPCR machines are used to amplify a particular segment of the DNA. Multiple copies are needed to properly understand and work with it. Not much DNA is needed to make the replications. The first step is to extract DNA and place it in a PCR tube. Next, add Primer 1 and 2, which attaches to the part of the DNA that we want copied. Next add nucleotides and DNA polymerase. The DNA polymerase is the part that creates the copies of DNA. The PCR machine has a storing dock for DNA samples, which is also a heating plate. A laptop connected to the PCR machine controls the different temperatures and how long they need to last. The heating plate raises and lowers the temperature depending on what is needed for a particular step in the DNA replication process. This process of replication is repeated thirty times. By the end of the thirtieth cycle, there are millions of copies of the sequence needed for analysis. (Content by Sairah F, edited and posted by William L).

Experimenting With the Connections

Part 2 (Unlabeled above Part 4): Heating plate
Part 3: LCD screen
Part 4: Heat Sink
Part 5 Rsenda ATX power supply
Part 5 OpenPCR circuit board (Content by Sairah F

When we unplugged the LCD screen (part 3) from the Open PCR circuit board (part 6), the screen went blank the machine had no visual output.

When we unplugged the white wire that connects to the OpenPCR circuit board (part 6) the heating block (part 2, unlabeled), the machine lost temperature output and the arduino circuitboard could not monitor the heat of the block and had no accurate control over the temperature. (Written by Sairah F, Posted by William L).

Test Run

We first tested the PCR machine on Wednesday October 24, 2012. The easiest part was dealing with the set up of the cycles for the reaction. The program was pretty self explanatory and very easy to use once you knew all of the parts. The PCR machine itself was fairly easy to deal with as well. One problem that we encountered was that the lid seemed somewhat hard to open and close because we weren't sure how stable it was going to be or if it would break. Also during the last cycle the LCD screen suddenly went blank but this was most likely do to a faulty power strip.


Polymerase Chain Reaction

1. A Polymerase Chain Reaction(PCR) is used to amplify a single piece of DNA. The steps that lead up to the replication of a DNA sequence are denaturation, annealing, and extension which involve several different cycles ranging in terms of both length of time and temperature. This results in the exponential replication of a certain sequence of DNA.

2. The amplification of a patient’s DNA can be separated into five different steps.
a. The first cycle is described as denaturation of the DNA, which is a double strand, into two single strands. This is accomplished by separating the hydrogen bonds within the DNA at a temperature of 97 degrees Celcius for 20-30 seconds.
b. Next is the annealing step which consists of the single strands of DNA being annealed to the primers between 50 and 65 degrees Celcius for 20-40 seconds. This step is done at a colder temperature than the denaturation in order to allow the DNA and primers to bond by hydrogen bonds to form a double stranded nucleotide.
c. The third step is characterized by the raising of the temperature and the Taq DNA polymerase to 72 degrees Celcius which is used to replicate the DNA strands. Taq synthesizes new, double-stranded DNA molecules that are identical to the original double stranded target DNA region.
d. The amplification step is then repeated 30 times to further duplicate the specific DNA region.
e. Finally, the PCR holds at 4 degrees Celcius as the reaction is stored.

5. Components of the PCR Master Mix
• 400µM dATP
• 400µM dGTP
• 400µM dCTP
• 400µM dTTP
• 3mm MgCl2

Reagent--------- Volume
Template DNA (20 ng) ---5.0 µL
10 µM Upstream Primer ---10.0 µL
10 µM Downstream Primer ---10.0 µL
GoTaq Master Mix ---50.0 µL
Nuclease-Free Water ---100.0 µL
Total Volume 175.0 µL

Patient ID 72537 74083
Sex Male Female
Age 54 49

Fluorometer Setup
1. Remove fluorometer elements from container.
2. Place smartphone into the black stand, creating the camera setup.
3. Position camera setup parallel to the LED box so that the camera is shooting along the channel of the LED box.

Fluorometer Setup Part I

4. Place Fluorometer Setup Part I onto lid from original container
5. While leaving the camera setup side of the container unsnapped, place container around Fluorometer Setup Part I.

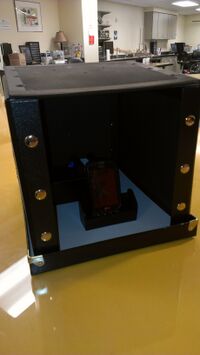

Fluorometer Final Setup

Fluorometer Use
1. Remove container covering Fluorometer Final Setup.
2. Switch on blue LED.
3. Change camera settings by turning flash on, setting ISO to 800+, increasing exposure to maximum and disabling auto-focus.
4. Pipette two drops of water (volume of 130-160 microliters per drop) onto the slide in the channel of the LED box.
5. Focus LED light on the drops so that the middle of the drop is aligned with the line of light created by the LED.
6. Put the container covering back over the Fluorometer Final Setup.
6. Take 3 photos, making sure not to disturb the positioning and setup.
7. Remove the container covering while again taking care not to change the placement of the setup.
8. Remove slide and dispose of the used slide.
9. Place new slide into LED box, and do steps 4 through 6 again.
10. Note the type of smartphone used throughout the protocol, the distance from smartphone to the base of the LED box (in centimeters), and attach an image of each position of the drops.

Transferal of Fluorometer Data to ImageJ
1. Use a USB cable to connect the smartphone that was used to a computer with the ImageJ software.
2. Open the Start Menu and double click on My Computer or Computer.
3. Select Portable Devices where the smartphone should be listed and double-click the icon.
4. Locate the DCIM folder and open it, and continue to the sub-folder Camera.
5. Select each picture that needs to be transferred, then Copy and Paste them into the folder you choose to store them in.
6. Open ImageJ software from Start Menu or by double-clicking the ImageJ icon on the Desktop.
7. Once ImageJ software is open, click on File and select Open in the toolbar located in the top left of the computer screen.
8. Select Browse then select the image you want out of the folder where you stored your photos (in step 5)
9. Repeat steps 7 and 8 to continue process with different pictures.

Research and Development

Polymerase Chain Reaction

This experiment heavily employs the use of PCR, or polymerase chain reaction. This process is used to amplify a segment of DNA for in-depth analysis. The process starts by adding a mix of DNA primers and DNA florescent tags that bind to a specific segment of DNA. After these primers bind, DNA polymerase binds to the primer-DNA strand bond and incorporates the florescent tags into the molecule. The polymerase adds base pairs to the base DNA strand and creates an antisense copy of the original strand. Since this process happens for both strands of the DNA, each process essentially duplicates the DNA strand. In order for this reaction to occur, the solution needs to be heated up to allow the double stranded DNA to melt into single strands. Then the solution needs to cool down and let the DNA anneal. Each one of these heating and cooling steps makes up the process of thermal cycling. Each cycle the DNA is replicated once. The sample is run through anywhere between 30 and 50 cycles in order to amplify the DNA and the targeted signal enough to be picked up by an imaging machine. Since the primers only bind to specific segments of DNA, the sample will only light up when the segment of interest is duplicated. In this lab, the SYBER green dye colored the DNA in solution, only fluorescing when bonded to double-stranded DNA. As a result, PCR can be used to identify the presence or absence of a particular DNA sequence.

Specific Cancer Marker Detection - The Underlying Technology

A single nucleotide polymorphism is a variation in a single DNA nucleotide. The four DNA nucleotides are represented using the letters A, T, C and G. These variations occur normally throughout DNA and represent the most common form of genetic variation among people. They occur at a rate of 1 per every 100 to 300 bases along the 3-billion-base human genome. SNPs are point mutations that have been evolutionarily successful enough to recur in a significant proportion of the population of a species. In other words, SNPs are evolutionarily stable, meaning they do not change much from generation to generation. This allows SNPs to be considered highly conserved within the population and therefore serve as ideal biological markers for genetic research. In order for a sequence variation to be classified as a SNP it must occur in at least 1% of the population. Millions of SNPs have been identified in the human genome and cataloged in accessible databases.

SNPs can occur with a gene, which is the coding region of DNA, or in a non-coding region. Because only about 3-5% of DNA actually codes for the production of proteins, most SNPs are found within non-coding regions. Since SNPs can be located near a gene associated with a certain disease, or occasionally within that gene, researchers have been able to pinpoint various diseases on the genome map. SNPs found within a gene, or somewhere in the regulatory region of a gene, are of particular interest because they are more likely to alter the biological function of the gene and therefore, the function of the protein.

It is important to remember that SNPs do not cause or identify a disease state directly, but allow for the possible diagnosis or assists in determining the likelihood that someone will develop a particular illness. They also have the ability to help predict an individual’s response to certain drugs, environmental factors, chemicals, toxins, etc. In fact, since SNPs occur most frequently in the non-coding regions of DNA, they do not produce physical changes in people and have no effect on health or development. (Written by Kim L, Posted by William L).

Single Nucleotide Polymorphisms and this Lab

In this lab, the PCR diagnostic is testing for the presence of the cancer-linked rs17879961 SNP mutation. Since this SNP creates a new DNA sequence, primers can be made to only bind to the mutated DNA sequence. As a result, the PCR test can be run with a unique primer that will only bind if the target DNA shows rs17879961 mutation, allowing the test to identify the presence or absence this cancer-linked SNP. In rs17879961, there is an anomalous A-T pair that creates a new and unique DNA sequence specific to this cancer-linked mutation. Thus, only a specific primer will bind to the targeted sequence and, as a result, the PCR will only react if the specific mutation is present.

rs17879961 Mutation and Primer Sequence
The DNA sequence surrounding the rs17879961 appears as follows, with the nucleotide switch in the brackets:

In order to isolate this specific segment, two specific primers are required. The forward primer coding from the 5’ to the 3’ end of the DNA has the following sequence:

The backward primer that attaches to the other strand of DNA has the following sequence:

Both of these primers follow the standards for effective primers, having an annealing temperature of 61 degrees Celsius for the forward-generated strand and 59 degrees Celsius for the backward-generated strand.

Polymerase Chain Reaction. N.d.
biologyreference.comWeb. 13 Nov 2012.

Bayes' Rule

Bayes' Rule is an exceedingly helpful tool when measuring the accuracy of a certain test. for a more in depth summary of Bayes' Rule lets conclude that P(B/A) are users and P(B/A-) are non users. then the new formula for testing the validity of the test would look like P(A/B)=((P(B/A)(P(A))/((P(B/A)(P(A)+(P(B/A-)(P(A-)). for a example reference, if 2.5% of the tested individuals were positive for cancer and the test was 95% accurate the equation would look something like this, and 97.5 individuals were negative, P(user|+)= (P(+|user)(P(user))/(P(+|user)(P(user)+(P(+|non-user)(P(non-user)). Thus with implementing the numbers for the variables the equation would look like ((.95)(.025))/((.95)(.025)+(.05)(.975))=.33=33%. With the information provided out of a study of 100 individuals 48 would be tested as a false positive and 16 would be tested as actual positive, and 36 would be negative. so the percentage of accuracy of the cancer test would be 33% as calculated. Bayes' Rule is exceedingly useful when calculating the false positive as well as the actual accuracy percentage, a needed tool when dealing with test that could potentially save an individual.

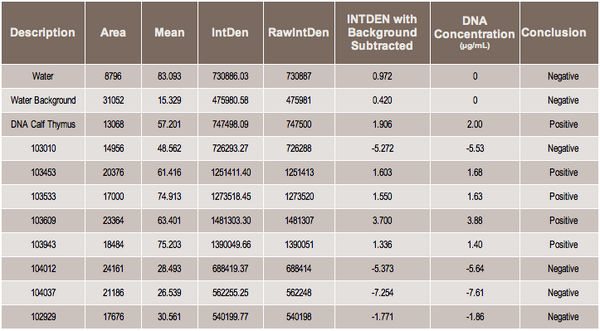

Calf Thymus



  • Description = Explains whether the sample was as listed or provides the sample identification number.
  • Area = Area of selected region, given in square pixels.
  • Mean = The average number of grey area pixels of selected region.
  • IntDen = The product of Area and Mean.
  • RawIntDen = the sum of the values of the pixels in the image or selection.
  • DNA μg/mL = Using the known DNA concentration of the positive control and the corresponding INTDEN value, our group calculated the projected DNA concentration of each sample using the formula: (IntDen of sample)/(IntDen of calf thymus)*2.
  • Conclusion = Whether or not the sample tested positive for the gene or not. If the DNA concentration was > 1μg/mL then the sample was considered positive.
