Name: Lekha Anantuni
Role: R&D
Name: Rohan Kumar
Experimental protocol planner
Name: Kyle Stoneking
Experimental protocol planner
Name: Austin Cuaderno
Open PCR machine engineer
Name: Josh Eger
Open PCR machine engineer


Thermal Cycler Engineering

Our re-design is based upon the Open PCR system originally designed by Josh Perfetto and Tito Jankowski.

System Design

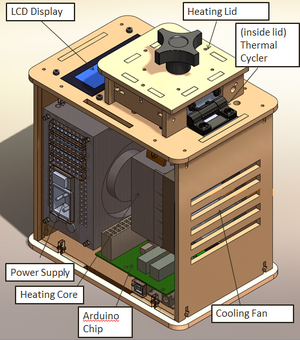

BME103 Group3 PCR.jpg

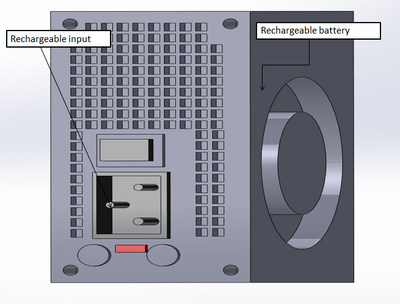

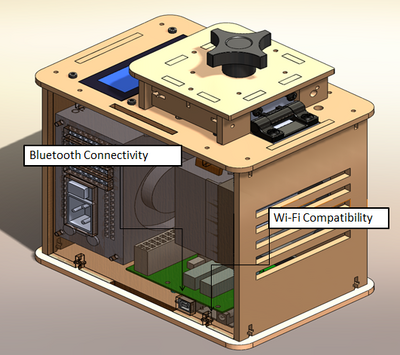

BME103.Group3.Rechargeable Battery.PNG BME103.Group3.45454544543221.Wifi BlueTooth.PNG

Key Features
The main features that we improved on this design of the Open PCR compared to the previous model was the portability and ease of use. The old Open PCR required a power cord that needed to be plugged into the wall at all times during use. The new design eliminates that inconvenience as it runs on a rechargable battery. It can be cumbersome to find a power outlet, but now the Open PCR can be used in more convenient places.

The old PCR also required a USB cable in order to send information to the computer and receive the input information on the program. The updated Open PCR is easier to connect to the computer since it does not need to be plugged in directly to the computer but instead connects via bluetooth. These two updates make the Open PCR portable and completely wireless. It is more convenient and easy to use compared to the old design of the PCR.

We additionally made our new design of the Open PCR aesthetically pleasing, so it will be available in bright and exciting colors such as red, green and purple.

1) Plug in the PCR machine.
2) Turn on bluetooth on machine and phone.
3) Pair the devices to share the data collected.
4) Turn on wifi on the Computer.
5) Load the open PCR machine with samples to test.
6) Click "Run Test" on phone.
7) Wait for machine to finish running.
8) Test results with the Fluorometer.



Supplied in the kit Amount
Open PCR Machine 1
Template DNA (20 ng) 0.2 μL
Fluorimeter 1
Open PCR Software 1
Image J Software 1
Glass Slides 50

Supplied by User Amount
Pippets 8
Computer 1
10 μM reverse primer 1.0 μL
10 μM reverse primer 1.0 μL
GoTaq master mix 50.0 μL
dH2O 47.8 μL
Eppendrof tubes 10

PCR Protocol
-Turn on PCR make sure it is fully charged, connect it to your computer using bluetooth or WiFi signal.
1.)Get 3 replicate DNA samples each from two patients and one positive control and negative control sample for a total of 8 samples. Mix each of your samples with Taq DNA polymerase, MgCl2, dNTP's, forward primer and reverse primer. Each sample should be about 50 micro liters.
2.)Label 8 empty PCR tube with unique labels that correspond to their respective DNA samples.
3.)Using one pipette per sample, to avoid contamination, transfer the PCR reaction mix to PCR tubes.
4.)Then place the samples into the PCR machine.
5.)Set the PCR program to three stages. Stage one: 1 cycle, 95 degree Celsius for 3 minutes. Stage 2: 35 cycles, 95 degrees Celsius for 30 seconds, 57 degrees Celsius for 30 seconds, 72 degrees Celsius. Stage three: 72 degrees Celsius for 3 minutes and then hold at 4 degree Celsius.

DNA Measurement Protocol
1.) After your PCR has finished replication, take the samples to the fluorimeter. Using permanent marker, number the transfer pipette at the bulb, so its only used for a single sample.
2.)With the permanent marker label the Eppendrof tubes at the top, you should have a total of 10 Eppendrof tubes labeled and 10 pipettes labeled.
3.)Transfer each sample separately into the Eppendorf tubes containing 400 ml of buffer.
4.)Using a specially labeled Eppendorf tube containing SYBR GREEN, with its own pippter, place two drops onto the first two center drops.
5.)Then using the sample place two drops on top of the SYBR GREEN solution drops.
6.)Then align the blue light of the fluorimeter so it passes through the drop.
7.)Then the smartphone operator should take a picture with the settings on the phone adjusted to inactive flash, iso to 800, white balance to auto, exposure to the highest setting and contrast to the lowest setting.
8.)This process should be repeated for all samples.
9.)Now analyze your pictures with Image J software.
10.)Open the software. Using the menu selection we used, analyze> set measurements and chose area integrated density and mean grey value.
11.)Using the menu select image > color > split channels.
12.) This should have created 3 files: a red, green and blue image. You only need the green image.
13.) Now click the menu bar to activate the oval selection.
14.) Draw an oval around the image of your sample and then select analyze > measure.
15.) Now move the previously drawn oval to an area away from the sample to obtain the noise measurements.
16.) Repeat this process for all of your samples, including the controls.

Research and Development

Background on Disease Markers

1.) The amyloid Beta precursor protein for Alzheimer's - Alzheimer's disease is a form of dementia in which patients experience loss of memory , confusion, as well as other symptoms. The amyloid hypothesis states that Alzheimer's is caused by a buildup of the amyloid protein in the brain. This gene for amyloid Beta precursor protein therefore might reveal to doctors and scientist whether or not an individual will develop Alzheimer's.
rs63751263 (

2.) Ubiquitin-like Modifier-activating enzyme for Spinal muscular atrophy - Spinal muscular atrophy is a disease caused by a genetic mutation in the SMN1 gene. Individuals that have this disease exhibit various degrees of mobility impairment due to the widespread death of motor neurons.

Primer Design

1.) Forward primer: CTTC[G]ACCT
Reverse primer: TCCA[G]CTTC

2.) Forward primer: TGTT[A]CAGG
Reverse primer: GGAC[A]TTGT


Exponential amplification of a specific gene.
