OUR TEAM: Group 11

Name: Benjamin Hook
Name: Jacqueline Janssen
Name: Samantha Boccasini
Open PCR machine engineer
Name: Tony Nguyen
Name: Ryelle Pattuinan
Name: Kenze Caulfield
Open PCR machine engineer


Thermal Cycler Engineering

System Design

Our re-design is based upon the Open PCR system originally designed by Josh Perfetto and Tito Jankowski. Our new design incorporates some new designs such as software, screen zize, number of testing tube lots, as well as size of heating lid. All of these alterations are made to make the Open PCR system more efficient in terms of its operating system and user-friendly features.

Key Features

Our most major change to the Open PCR System is the change we made to the read-out screen on the top of the device near the heating lid. This change actually affects a few major components of our system. Not only did we move the screen to the side of the machine, rather than the top, but we also optimized the size of it. This size-change allows users to see the read-outs clearer. We also eliminated the need for a computer (or any outside device, that is) as this new larger screen will also be able to control the machine. Now the user is able to input cycles, temperature, etc. right on the screen instead of needing to plug it into a separate system. This allows for better portability and easier use.

We also changed the space of the testing tubes so now more tubes can be tested at once. To do this we lengthened the plate as well as the heating lid entirely across the top of the machine. Removing the screen from this part of the Open PCR System also allowed for this change.

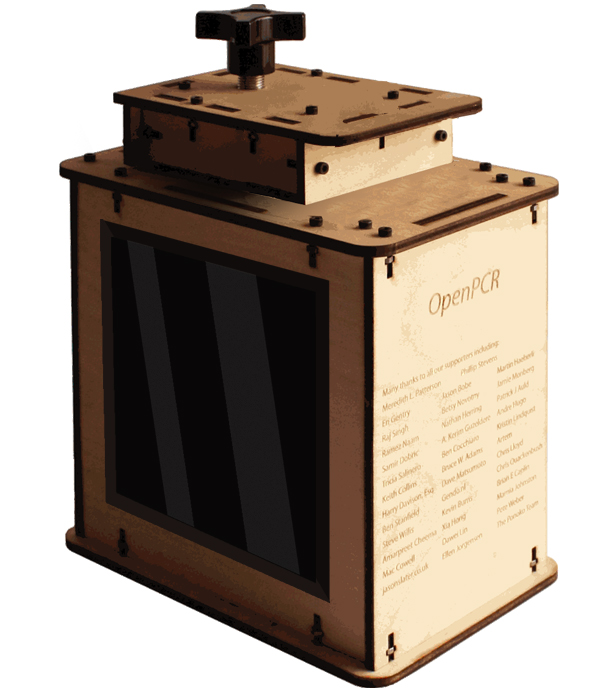

Open pcr copy.jpg

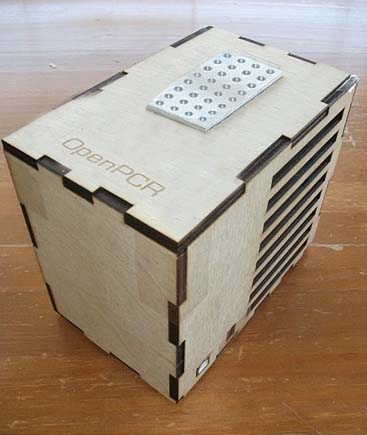

Open pcr 2 copy.jpg

The same type of instructions to setting up the original PCR machine apply to this one; however, running the cycles will be quite different. There will no longer be a USB drive or cord that connect to a laptop. Now the actual readings and programs will all be on the touch-screen. So now you will be able to set up the machine very similarly as before except everything will be on the screen. The idea for the new PCR machine is to be more mobile and accessible to users. Setting up the cycling will all be the same with the same options as well, so there will not be any huge differences other than it will be less worry about connection to the laptop, which in turn equally reduces worry about portability.



Supplied in Kit
Open PCR Machine
(32) Plastic Test Tubes to Fit into PCR Machine
PCR Power Adapter
USB Cable
(8) Glass Slides
SYBR Green (200 mL)
Measurement Buffer (800 mL)
Black Box
Positive Sample (50 mL)
Eppendorf Tubes (40)
Supplied by User
Low Retention Adjustable Pipette with Disposable Pipette Tips
DNA Solution
Positive Control DNA Soltution
Negative Control DNA Solution
1 Smartphone
Pair of Gloves
1 Lab Coat
Water Sample
What the DNA Solution Should Consist Of
1 Micro-Liter Forward Primer
1 Micro-Liter Reverse Primer
50 Micro-Liter GoTaq Master Mix
.2 Micro-Liter Patient's DNA (Or Controls)
47.8 Micro-Liter Distilled Water

PCR Protocol
Step 1: Download the Open PCR Software onto Computer
Step 2: Plug in and turn on the Open PCR machine, connect the USB cable to your computer
Step 3: On the machine interface, select "DNA replication" and then choose desired number of cycles (at least 30 for quality results).
Step 4: Using the Pipette, transfer 30 samples of the patients DNA into each test tube. You should only use 1 Pipette tip for this part of the process. Also transfer the positive and negative control into separate test tubes.
Step 5: Next, transfer the forward and reverse primers into each of the 32 test tubes. 2 Pipette tips should be used in this part of the process: 1 for all of the forward primer transfers, and 1 for all of the reverse primer transfers.
Step 6: Using a new pipette tip, transfer the GoTaq Master mix into each of the 32 test tubes.
Step 7: Dilute the 32 solutions by filling the remainder of the test tube with distilled water.
Step 8: Carefully Label Each test tube with a sharpie making sure that the positive and negative controls are clearly marked.
Step 9: Open the heated lid of the Open PCR machine and place the test tubes into the designated slots. Close the lid.
Step 10: Make sure everything is properly connected and then choose "begin replication" on the interface.
Step 11: Check to make sure that the computer is correctly receiving the information, if not: stop the cycle, check the USB cord, and try again.

DNA Measurement Protocol
Step 1: When replicating is finished, remove the 32 tubes from the PCR Machine, as well as the positive and negative controls.
Step 2: Transfer DNA samples to eppendorf tube containing 800 mL of buffer. Use a new tip on the pipette for each transfer of DNA to avoid contamination. Do the same for all the controls.
Step 3: Using the rough side of the slides, place two drops over two holes on the slide of SYBR green. Carefully, using a new tip of a pipette, transfer two drops of a DNA sample on the SYBR green.
Step 4: Place the slide in the black box directly in the ray of the light.
Step 5: Take a photo of the slide using the smart phone.
Step 6: Using a new pipette tip that is marked for waste, remove the sample from the slide and dispose of it.
Step 7: Repeat steps 3-6 using a new pipette tip for each new sample or control.
Step 8: Analyze the results, knowing that the samples that glow green are the positive ones.

Research and Development

Background on Disease Markers

Prostate Cancer: androgen receptor

"Prostate Cancer is cancer that starts in the prostate gland. The prostate is a small walnut-sized structure that makes up part of a man's reproductive system. It wraps around the urethra, the tube that carries urine out of the body."[1] Prostate Cancer is the most common cause of death from cancer in men over age 75. It's very rare to find it in men younger than 40. In fact, the most common problem in almost all men as they grow older is an enlarged prostate. More information can be found regarding Prostate cancer is here.[2]

An image of a normal prostate and cancer prostate[3]

The marker that is being use was rs137852593.[4]


Retinoblastoma 1

Retinoblastoma is a rare, cancerous tumor of a part of the eye called the retina. The disease is caused by a mutation in a gene controlling cell division, causing cells to grow out of control and become cancerous. The cancer generally affects children under the age of 6. It is most commonly diagnosed in children aged 1-2 years. The information regarding this disease is here.[6]

An image of the eye is here. [7]

The marker that is being use is rs121913297. [8]


Primer Design



There is a mutation from a G to a T


Prostate Cancer


There is a mutation from a G to a T


If the sample carries the mutation, then the sample would test positive. If it does not, then the sample would test negative because the primers would not be able to bind to the DNA because it does not contain the proper sequence.


These are the primers for the Retinoblastoma sample binding:


These are the primers for the Prostate Cancer sample binding:

Prostate Cancer.jpg

This is the process of DNA amplification: [10]


[math]\displaystyle{ P(A|B) = \frac{P(B | A)\, P(A)}{P(B)}. \, }[/math]

[math]\displaystyle{ P(A|B) }[/math] represents the probability that cancer will produce a positive outcome in the test (when the primer binds to the mutated gene).

[math]\displaystyle{ P(B|A) }[/math] represents the probability a person will yield a positive result for the cancer test.

[math]\displaystyle{ P(A) }[/math] represents the probability of carrying the mutated gene.

[math]\displaystyle{ P(B) }[/math]represents the probability of people who would yield a positive result in the test without really having cancer.
