Name: Wade Patrick
Machine Engineer
Name: Liann Klein
Machine Engineer
Name: Haylee Poncy
Protocol Planner
Name: Kyle Labban
Protocol Planner
Name: Alexandria Lam
R&D Scientist


Initial Machine Testing

The Original Design

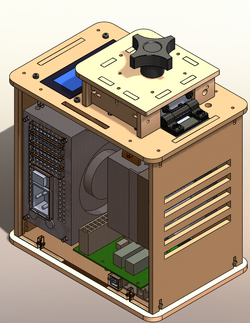

PCR Machine
The Polymerase Chain Reaction (PCR) machine, shown above, is used to replicate a large quantity of a specific strand of DNA. The PCR Machine performs this task by first splitting up the DNA. Since DNA is double stranded, and melts to become two seperate strands at a certain temperature, the PCR Machine heats the DNA to the specific temperature so that the DNA becomes to seperate strands of DNA. Then the PCR Machine uses primers, which are strands of DNA that contain a certain number of nucleotides, to adhere to the two seperate strips of DNA. Then the polymerase, which is an enzyme used to fill in the holes of DNA, completes the strand, resulting in two seperate, double strands of DNA.

Experimenting With the Connections

When the wire from the board for the LCD screen was unplugged from the main board, the LCD screen on the machine turned off and went blank. When the white wire that connects the main board of the machine and the temperature system was unplugged, the temperature reading decreased and was not accurate.

Test Run
We administered a test run on October 25 and followed the protocol provided. Everything ran smoothly as the numbers on the Open PCR display screen matched the numbers shown on the computer. One minor inconsistency was that the estimated time to complete the test did not match the actual time it took to complete it.


Polymerase Chain Reaction

Polymerase Chain Reaction (PCR) is a process that uses DNA polymerase to synthesize a large number of copies of a target DNA sequence. PCR is dependent on short DNA fragments called primers. After the DNA has been denatured by heating and then cooled to a temperature suitable for the primers to bind to their complementary sequences, the primers bind to areas adjacent to each side of the targeted DNA sequence. Once the primers are in place, the polymerase extends them into large complimentary strands. The DNA is then denatured once again, then cooled, the primers bind to the complimentary sequence and then the polymerase extends them. Repeating this process results in an exponential amplification of the target DNA sequence.

Amplifying a patient's DNA sample using PCR can be done as follows:

  1. Collect biological samples from patients or target group.
  2. Combine samples with reagents primers to the sample. These primers will enable the DNA to "unzip" and duplicate the target region using the extra base pairs mixed into the solution.
  3. Place the DNA sample and reagents into a PCR machine, and program the machine to carry out the desired sequences.
  4. Allow the machine to cycle. Once complete, collect the amplified DNA and test.

In our experiment, a PCR master mix from Promega containing bacterially derived Taq DNA polymerase, dNTPs, MgCl2 and reaction buffers was used.

Reagent Volume
Template DNA (20 ng) 0.2μL
10μM forward primer 1.0μL
10μM reverse primer 1.0μL
GoTaq master mix 50μL
dH2O 47.8μL
Total Volume 100.0μL

Sample Description (8 samples)
Positive control: cancer DNA template Patient 1: 68754, F, 57y Patient 1: 68754, F, 57y Patient 1: 68754, F, 57y
Negative control: no DNA template Patient 2: 66913, M, 66y Patient 2: 66913, M, 66y Patient 2: 66913, M, 66y

Flourimeter Measurements

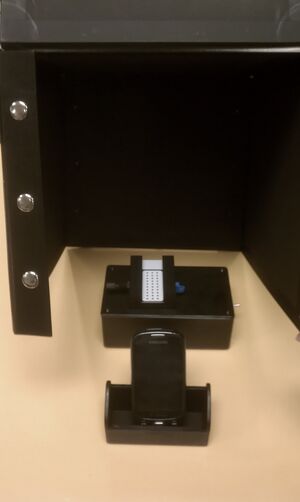

Flourimeter Assembly
After we used a cellphone to take pictures of the samples that had a blue LED light shining through them, we processed these images with ImageJ software to find the amount of green light that was produced (IntDen). The results from this ImageJ analysis of the images can be seen below:

Sample Area Mean IntDen RawIntDen
Negative control 16268 21.125 343656 343656
N.c. background 16268 .326 5297 5297
Positive control 16800 76.351 1282697 1282697
P.c. background 16800 .282 4732 4732
Patient 1, sample 1 25464 14.135 359937 359937
Patient 1, sample 1, background 25464 0.063 1603 1603
Patient 1, sample 2 26924 44.721 1204073 1204073
Patient 1, sample 2, background 26924 0.009 232 232
Patient 1, sample 3 16958 20.176 342142 342142
Patient 1, sample 3, background 16958 0.088 1486 1486
Patient 2, sample 1 15276 79.489 1214276 1214276
Patient 2, sample 1, background 15276 0.264 4040 4040
Patient 2, sample 2 22628 72.753 1646248 1646248
Patient 2, sample 2, background 22628 0.066 1493 1493
Patient 2, sample 3 22804 96.671 2204484 2204484
Patient 2, sample 3, background 22804 0.059 1355 1355
Water 31856 11.147 355104 355104
Water Background 31856 0.021 672 672
Calf Thymus 13580 61.625 836872 836872
Calf Thymus Background 12212 0.05 611 611

Research and Development

Specific Cancer Marker Detection - The Underlying Technology

      The sequence r17879961 represents a specific sequence where a Thymine is replaced by Cytosine due to a missense mutation on chromosome 22. It affects gene CHK2 that is linked to colorectal cancer. A primer binds to a specific sequence on the template DNA and tells Taq polymerase where to begin reading and adding nucleotides to synthesize a new strand of DNA. Primers are very specific in that they can only bind to a certain sequence. A backwards primer consists of 20 nucleotides that specifically are ACT TCT TAC ATT CGA TAC AT. The forward primer is TGT GAT CTT CTA TGT ATG CA. These primers will only bind to that specific sequence of r17879961 where the Cytosine is present and not the Thymine.

      If the sequence is present, the primers will bind to both leading and lagging strands of the template DNA. Taq polymerase can then bind and begin synthesizing the strand. The test will come out positive because the DNA will synthesize to create double stranded DNA that the SYBR Green I dye will then bind to. This will cause the DNA to fluoresce and yield a positive result.

      If the r1789961 SNP is not present, the primer will not bind to the DNA template. Because the primers tell Taq polymerase where to replicate, Taq polymerase will not have anywhere to bind. Replication will not occur with the product of a double-stranded DNA, but linearly. The SYBR Green I dye only binds to double-stranded DNA, so it will not show because it is single-stranded. There would not be enough double-stranded DNA to fluoresce if the cancer gene is not present. Therefore, the test will display a negative result.

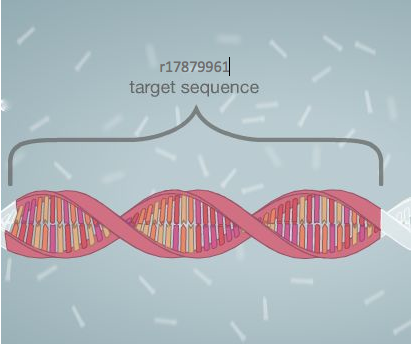

Figure 1 shows the sequence of DNA containing the sequence containing the missense that leads to colon cancer.

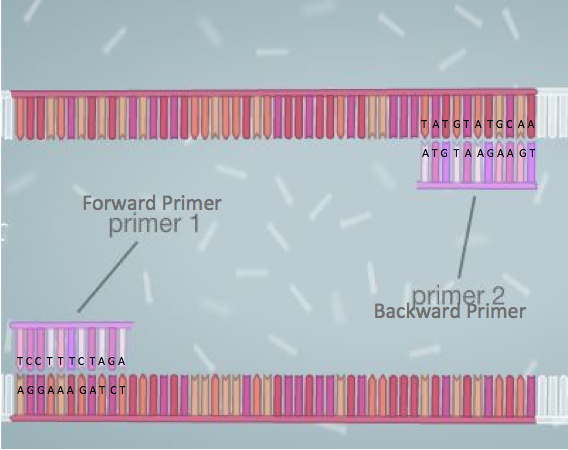

Figure 2 shows the DNA primers specific to the sequence attaching.

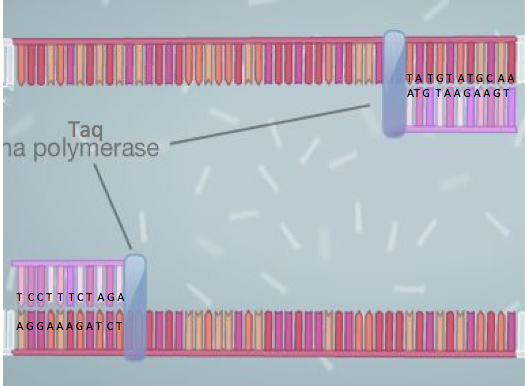

Figure 3 shows Taq polymerase recognizing where to attach due to the primers.

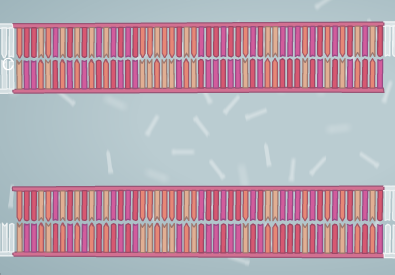

Figure 4 shows a successful double-stranded replication of the original DNA.

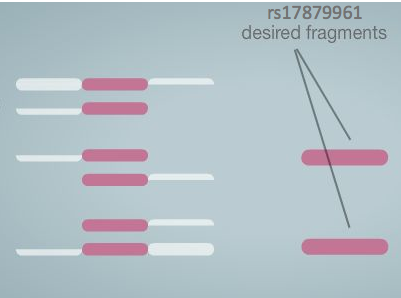

Figure 5 shows the desired sequence replicated after several cycles

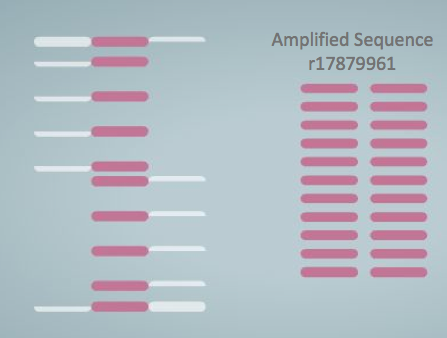

Figure 6 shows the amplification of the sequence to a greater magnitude than Figure 1 after more cycles

Source of images:


Sample Integrated Density DNA μg/mL Conclusion
PCR: Negative Control 338359 0 negative
PCR: Positive Control 1277965 3.848 positive
PCR: Patient 1 ID 68754,, rep 1 358334 0 negative
PCR: Patient 1 ID 68754,, rep 2 1203841 3.539 positive
PCR: Patient 1 ID 68754,, rep 3 340656 0 negative
PCR: Patient 2 ID 66913, rep 1 1210236 3.565 positive
PCR: Patient 2 ID 66913, rep 2 1644755 5.376 positive
PCR: Patient 2 ID 66913, rep 3 2203129 7.703 positive

Despite Patient 1's second sample being positive for cancer, patient 1 is more than likely without cancer and this repetition being positive is due to an error like contamination. More testing would be necessary to find out.


  • Sample = The samples were the various distinct sources of DNA measured.
  • Integrated Density = Using the ImageJ software, the image was split into its various color components. This value represents the amount of 'green' light measured from the sample with the blue LED light shining through the sample and subtracted from the background value, which was 'black' in color.
  • DNA μg/mL = The concentration of DNA in the sample as micro-grams per milliliter.
  • Conclusion = Samples with a concentration above a certain threshold were deemed "positive" for the cancer, while the samples with DNA concentrations below the threshold were considered to be "negative".
