Series Three Photosynthesis Lab 8 : Photosynthetic Pigments

We are now beginning a series of investigations related to photosynthesis. In this laboratory period, we will extract and examine pigments of plant leaves. Some of these pigments, namely chlorophylls (a and b) and carotenoids are involved in absorbing light that is used to drive photosynthesis in higher plants. In the next two laboratory sessions, we will examine various factors that influence the resulting photosynthetic electron transport rates.


Chlorophyll a and b impart the green color that one associates with plant leaves. Carotenoids, which are yellow pigments, are also present in leaves but are usually masked by the chlorophylls. It is only in the fall when the chlorophylls are degraded faster than the carotenoids that the yellow color becomes visible to us. The chlorophyll and carotenoid contents of plants can vary markedly with its age, or depend on environmental factors such as light intensity or quality during growth. The pale green appearance of a willow tree in early spring is markedly different from its olive-green of late summer. The intense dark green of "shade adapted" plants differs from the lacy green colors one sees at the top of a forest canopy. In today’s lab we will measure the relative concentrations of photosynthetic pigments in leaves of several different plant species.

Carotenoids and chlorophylls are found in the chloroplasts and are associated with the thylakoids, the internal membrane network of these organelles. It is now established that all chlorophylls are organized as discrete chlorophyll-protein complexes within the lipid matrix of the photosynthetic membrane.

The majority of chlorophyll a molecules (and all chlorophyll b and carotenoid molecules) function as antenna pigments. In combination with proteins, they form the light-harvesting complexes, which absorb and funnel light energy to the reaction center chlorophylls, thereby allowing the plant to utilize a broad spectrum of wavelengths for photosynthesis. Some of the chlorophyll a molecules serve specialized functions in the reaction centers of photosystems I and II, where the light energy is used to drive the reduction of components of the electron transport chain.

Leaves contain usually 7 different carotenoids (neoxanthin, violaxanthin, lutein, zeaxanthin, antheraxanthin, β-carotene and α-carotene; see Fig.1) that function in light harvesting. All carotenoids are derived from a skeleton of 40 carbon atoms, linked with alternating unsaturated bonds. The terminal carbons are arranged in rings. Carotenoids such as lutein that contain oxygen are termed xanthophylls. As mentioned before these carotenoids appear yellow or orange in color, because they absorb light in the blue part of the visible light spectrum. One can determine the characteristic patterns of light absorption of an isolated pigment in solution at different wavelengths. These so-called absorption spectra (singular = spectrum) will allow you to identify which pigments you have isolated from the leaves.

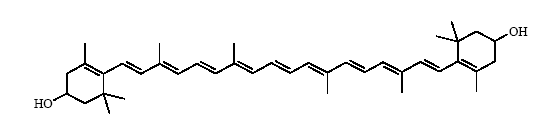

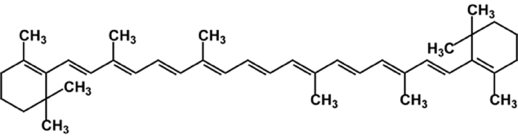

Neoxanthin Figure 1. Molecular structures of carotenoids typically found in a leaf

Images from:

Figure 2. Molecular structures of chlorophylls a and b
Image from:

In order to obtain an absorption spectrum one must first use a solvent to dissolve the chlorophylls and carotenoids from the thylakoids of the chloroplasts. In today’s lab, students will work with one species of plant. Each pair of students will use 100% acetone to extract and identify the photosynthetic pigments from the plant.

In addition to the chlorophylls and carotenoids you may also extract water-soluble anthocyanins, which are red or purple in color. These pigments are localized in the vacuole, and are not involved in light absorption for photosynthesis. It is not clear what role they play, but some evidence suggests that they protect leaves from harmful UV B radiation and deter herbivores due to their bitter taste.

The various pigments that you extract will be separated by making use of their differential polarity (which influences their solubility in various solvents) and by their differential rates of migration through a solid medium. In this case, migration will be up a sheet of filter paper. This method of separation is called paper chromatography.

The chromatography paper usually contains pure cellulose, which is a linear polymer of D-glucose with β-1,4 linkages and many polar side groups. The stationary phase refers to water that is tightly bound to the cellulose structure and fills the interspaces of the matrix (the paper fibers). The mobile phase refers to any solvent (known as the developing solvent) that is partially miscible (mixable) with water. Pigments that are highly water-soluble or that have the greatest hydrogen-bonding capacity will move more slowly along the paper, while less polar compounds travel faster with the developing solvent (petroleum ether, in this case). Paper chromatography is usually used for separating highly polar compounds such as sugars, amino acids, and some pigments.

The chromatography solution we shall use is a saturated solution of a polar solvent, n-propanol (1% vol/vol) in a relatively non-polar solvent, petroleum ether. As the solvent mixture ascends the 3MM filter paper (the matrix) by capillary action, the more polar component of the solvent adsorbs to the filter paper to become thousands of droplets of the stationary phase. These bound, stationary droplets are successively washed by the passing of the more non-polar, mobile phase. Those photosynthetic pigments having greater solubility in the more polar solvent will be retained or partitioned in the stationary phase, whereas other pigments more soluble in the non-polar, mobile phase will move up the chromatogram.

Once the pigments are separated on the chromatography paper according to their polarity, they can be extracted with a solvent. The identity and purity of the band can be tested by recording its absorption spectrum.

PART I: Pigment Extraction and Separation

In this portion of the lab, you will extract pigments from leaves and separate the different pigments using paper chromatography.

PART I Procedure

All glassware used for pigment isolation and separation must be rinsed with 70% ethanol immediately after using it. CAUTION: Pour used solvents into the waste container in the HOOD. DO NOT POUR FLAMMABLE SOLVENTS INTO ANY SINK DRAIN. The solvents you will be using today: acetone, n-propanol and petroleum ether are all irritants to the eyes, skin and respiratory passages, so handle with care.

A. Extraction of Pigments (work in hood only)

1. Extract photosynthetic pigments by grinding 2g of your leaves, torn into small pieces, in a mortar with a pinch of clean sand and a total of 10mL of 100% acetone. Initially, add only a small amount of acetone to begin the grinding process. It is much easier to grind the leaves if the extract is a pasty consistency. Add more solvent in small increments while continuing to grind the leaves. For some species you may need to add more than the suggested 10mL of acetone. Pour the extract into a 15mL centrifuge tube and centrifuge in the benchtop centrifuge for 3min. Remove the extract to a 10mL graduated cylinder using a Pasteur pipette. Record the volume of the extract in your lab notebook. Cover the extract with Parafilm® to prevent evaporation. This extract will be used for chromatography.

Clean-up: Wash mortar and pestle immediately with 70% ethanol. Discard ethanol in labeled waste bottle in hood. Discard centrifuge tube in hazard bag in hood.

B. Separation of Pigments by Paper Chromatography

1. In the hood (wear gloves) Prepare 25mL of chromatography solvent by first adding 25mL of Petroleum ether into your chromatography jar followed by 250µL of n-propanol. Attach the lid tightly to allow saturation of gases in the jar. Label your jar with colored tape.

2. Obtain a piece of 3MM filter paper, being very careful not to touch the flat surface. Place the paper on the covered table, and draw two dots with a pencil about 2cm from the bottom (narrow edge), and 1cm from the left and right edges. Do not use a pen, because pen marks will develop with the pigments.

3. Using an eye-shadow applicator, apply the pigment extract between the dots in the manner demonstrated by your instructor. Do NOT extend the line to the side edges--leave 1cm space on each side. You may need to make more than one application of extract to obtain sufficient pigment in each band, and therefore, good absorption spectra. Apply the extract with the edge of the applicator, not the wide face. This will give a thinner line. Wait between applications for the extract to dry, otherwise you will get a very thick line. The number of applications will depend on the type of plant used and the concentration of the extract. If the line is very faint, more applications are needed. Ask your instructor, if enough extract has been applied.

4. Quickly, place the chromatogram in the chromatography jar in the hood, pigment line down and attach the lid tightly. Be sure the chromatography solvent (which contains petroleum ether with 1% n-propanol) in the jar will not stand higher than the line of applied pigments, that is, be sure the solution will migrate through the line and move the pigments up the paper rather than to diffuse them from the paper into the standing solvent.

5. Observe as the solvent front moves up the paper. Stop the process when the solvent front is about 2 cm from the top. Note that the pigments move up the paper very quickly. How long does it take? Check after 5 minutes. At the end, there should be 3–5 bands of pigment: 2 green bands and 1–3 yellow bands. Generally, there is a yellow pigment band (migrating with the solvent front), followed by 2 green bands, and finally 0–2 yellow bands.

6. Remove the chromatogram and allow it to dry in the hood.

PART II: Spectrophotometery

In this portion of the lab, you will examine the absorption spectra of the separated pigments and determine the concentration of chlorophyll a by generating a standard curve using a spectrophotometer.

Light is a form of electromagnetic radiation. It travels through space in rhythmic waves, and the distance between the crests of the waves is called the wavelength. Wavelengths of electromagnetic radiation range from less than a nanometer to greater than a kilometer, and this wavelength is inversely proportional to the amount of energy present. The entire range of electromagnetic radiation is called the electromagnetic spectrum, which is diagrammed in Figure 3.

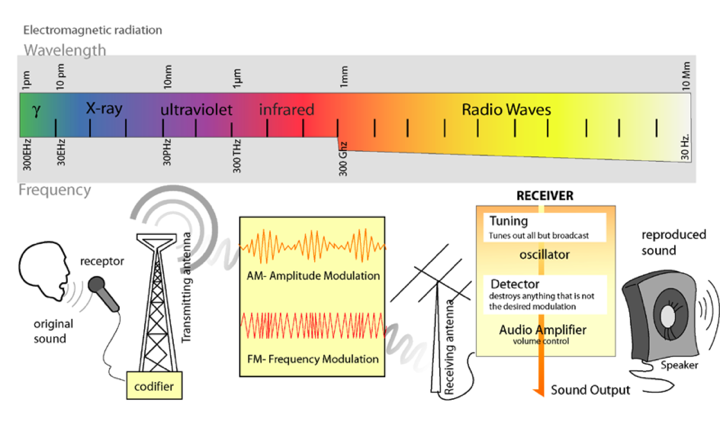

Figure 3. The Electromagnetic Spectrum.
Image from:

The radiation in the visible portion of the spectrum is detected as colors by the human eye. Color is determined by the wavelengths of light that are reflected by molecules in the substance, while the other wavelengths are absorbed. Therefore, an object that appears red absorbs the blue-green wavelengths of light and reflects the red wavelengths. Our perception of color is qualitative, but there are instruments that quantify the amount of light absorbed at a particular wavelength by a solution. These instruments are called spectrophotometers. As shown in Figure 4, a simple spectrophotometer contains a light source that is focused on a prism or diffraction grating, which splits this light into individual energy bands. These bands are further focused through a narrow slit, which can be moved across the spectrum to select a specific wavelength. This monochromatic (one wavelength) beam of light is passed through a cuvette containing the sample to be measured. As the light passes through the sample, some of it is absorbed by the molecules in the solution. The remainder of the light is transmitted through the sample, and impacts a photodetector that changes light energy into an electrical current. The magnitude of this current is proportional to the light intensity. The detector signal is amplified by a photomultiplier and is fed into the display meter as a number (digital) or a stylus deflection (analog), which indicates the amount of light absorbed by the molecules in the solution. Most spectrophotometers can also indicate the amount of light that is transmitted through the solution.

Figure 4. Diagram of the Light Paths in a Spectrophotometer.
Image from:

The Beer-Lambert Law

The amount of light that passes through a solution in a spectrophotometer is called transmittance (T), and can be defined mathematically as, T = I/Io, where I is the intensity of the light transmitted through the sample, and Io is the intensity of the incident light on the sample. The absorbance (A) is the negative log of the transmittance, A = –log T. Absorbance is directly proportional to the concentration of the absorbing molecules in the solution and the distance the light travels through the solution. Therefore, absorbance can be used as a quantitative measure of the concentration of a solution. These concepts are expressed mathematically in the Beer-Lambert Law:

The molar extinction coefficient is a constant that is dependent upon the chemical nature of the absorbing material and the wavelength employed for the absorbance measurement. The path length is determined by the width or diameter of the cuvette used to contain the sample. Absorbance is unitless.

Quantitative analysis of many biological materials is based on: a) the material itself exhibiting light absorbance at a particular wavelength, or b) the biological material reacting with a chemical reagent to form a colored product in such a way that the absorbance of the product is a quantitative measure of the concentration of the biological material. Because these materials must be dissolved in a solvent before an absorbance reading can be obtained, absorption by the solvent is a potential source of error. To insure that the absorbance reading will reflect only the absorbance of the molecules to be quantified, spectrophotometers are initially set to zero absorbance with the solvent that was used to dissolve or dilute the solutions. The tube containing the solvent is called the blank.

PART II Procedure

A. Determination of Absorption Spectra (work in pairs)

1. With a pencil, number the bands in your chromatogram from the top down. Use the lab's digital cameras to take a photo of your chromatogram. Download your photo onto the desktop of one of the lab computers (Appendix J). Open a Word document and insert the photo in the form of a picture. Save the file as a Word document and email it to yourself and your partner in FirstClass.

2. Cut the chromatograms into horizontal strips as directed by your instructor. Take care to cut the strips so that they contain no more than one horizontal band of pigment. It is best to work with only one pigment at a time to avoid contamination of samples. If the band is light, use the lesser volume of acetone indicated in step 3.

3. Pipet 1–2mL of 100% acetone into three 13mm test tubes. Taking each of the 3 types of pigment (top green, bottom green and one yellow) separately, cut the strip into small pieces that can be submerged in the solvent. Cover the opening of the tube with Parafilm® to prevent acetone evaporation. Bring the test tubes and your matched glass cuvettes to the Beckman spectrophotometer. Carry the cuvettes in a cuvette rack, as they are expensive. Do not dispose of their plastic tops! Refer to the directions for using the Beckman DU®530 spectrophotometer in Appendix C (Program #5, 400–700nm).

4. Once the baseline has been run from 700–400nm, using 100% acetone in the cuvette, run an absorption spectrum for each pigment, rinsing the sample cuvette with acetone (from a squirt bottle in the hood!) between readings. The peaks and valleys will be adjusted automatically by the spectrophotometer, by changing the range of % absorbance on the y-axis. You can use the cursor to obtain the wavelengths of the spectral peaks, or estimate them from the printed spectra. These peak wavelengths will be useful for determining the identities of the pigments associated with the spectra.

5. When all the spectra have been recorded, print the chlorophylls together either on one graph or separately (Appendix C). Print the carotenoids as a separate graph. Be sure to label which band from the chromatogram corresponds to each spectrum.

B. Prepare Serial Dilutions of Chlorophyll Derived Stock Solution

Each pair will use a stock solution to prepare a series of 4 dilutions of a dietary supplement that contains chlorophyll among other compounds (stock chlorophyll derived compounds at 0.05mg/ml). Each dilution in the series will differ from the previous dilution by 1/2, so the dilution ratio for each tube is 1/2, 1/4, and 1/8. Calculate the concentrations of the chlorophyll derivative that the tubes (in micrograms/ml) will contain after the dilutions have been prepared, and record them in your lab notebook.

1. Label four 13mm test tubes with the dilution ratios: 1/2, 1/4, 1/8, 1/16.

2. With a 5.0mL serological pipette add 4.0mL distilled water to each tube.

3. Using a clean pipette, add 4.0mL of stock solution to the tube labeled 1/2 and mix by inversion (not vortexing). Use square of Parafilm® to cover test tube opening. Keeping thumb on Parafilm®, invert test tube twice.

4. Use a clean pipette to add 4.0mL of 1/2 dilution to the tube labeled 1/4; mix.

5. Use a clean pipette to add 4.0mL of 1/4 dilution to the tube labeled 1/8; mix.

6. Use a clean pipette to add 4.0mL of 1/8 dilution to the tube labeled 1/16; mix.

C. Determination of Absorbance versus Concentration

You will now use all four dilutions (stock, 1/2, 1/4, 1/8, 1/16) to demonstrate the relationship between absorbance and concentration. Do not read the stock solution, as this will give you an absorbance value that is too high. Set the Spectronic20+® spectrophotometer to the wavelength that gave maximal absorption for chlorophyll derivative in Part A and zero the instrument using water as the blank (Appendix B). Read the absorbance of the four concentrations and record them in your lab notebook next to the appropriate concentrations. Using the Excel directions in Appendix D plot these data to generate a simple scatter plot. Be sure to label the axes and give units, if appropriate, (ug/ml on the x and A no units on the Y). Is there any apparent relationship between the absorbance values and the concentrations of the four solutions? Does this relationship follow the Beer-Lambert Law?

D. Data Analysis and Determination of an Unknown Concentration of Chlorophyll Derived Solution

This section of the lab will address some of the ways that analytical data are presented and evaluated. For this, you will be using the absorbance and concentration values obtained for your chlorophyll derived solutions in Part C.

1. Linear Regression Analysis

Linear Regression is a method of data evaluation that enables us to create a linear plot of absorbance data versus concentration for a series of solutions. This plot can be used as a measure of compliance with the Beer-Lambert Law and to predict the concentrations of unknown samples. The plot generated by the linear regression method is called a standard curve, and is described by the equation y = mx + b, where m is the slope of the line, b is the y intercept, and x, y are the data points. Because all data may not be perfectly linear, a measure of how well the regression line fits the actual data points, called the correlation coefficient (R2), is also determined. The calculations for linear regression are quite tedious, so computer programs are often used to assist with the calculations. We will be using Microsoft Excel to calculate and plot linear regression data today. The data must be entered such that the independent variable (concentration, in this case) is plotted on the x-axis. The dependent variable (absorbance, in this case) will be displayed on the y-axis. A sample standard curve can be found here:
Reference: Dunne RP (1999) Spectrophotometric measurement of chlorophyll pigments: a companson of conventional monochromators and a reverse optic diode array design. Mar Chem 66:245-251

The linear regression equation and the R2 value are printed on the graph. A R2 value equal to 1 is indicative of perfect correlation among all the data points, and R2 values of 0.99-0.97 indicate good linearity. If acceptable linearity is demonstrated, the regression equation can be used to calculate the concentrations of unknown solutions by substituting the absorbance of the solution into the equation as the y value and solving for x.

To verify the linearity of your dilution series data, use Excel (Appendix E for regression plots) to plot a standard curve using the concentrations and corresponding absorbance values for these solutions determined in Part B. Is your standard curve linear? If so, what does this tell you about the relationship between concentration and absorbance? If your standard curve is not linear, consider the types of errors that may have contributed to this lack of linearity.

2. Determination of Unknown Concentration
There is an animation showing how to determine the concentration of an unknown available at: [|]

Your lab instructor will give you a test tube with an unknown concentration of chlorophyll derived solution. At the appropriate wave length, measure the absorbance and determine the concentration of this solution. Before you leave the lab, please hand in your standard curve along with the measured chlorophyll derived solution's concentration.

Laboratory Cleanup

1. Wash glassware with 70% ethanol as soon as possible.
2. Discard all ethanol in labeled bottle in hood.
3. Place glass pipettes tips down in pipette canister.
4. Discard Pasteur pipettes in red sharps container.
5. Rinse cuvettes with 95% ethanol and leave upright to dry.
6. Discard eye-shadow applicator.


Media:Assignment for Lab 8.doc Download Assignment below in Word format through this link

(Answers to questions 1 and 2 [including subparts] to be collected at the beginning of Lab 9)

  1. Label your printed spectra and chromatogram, and write figure legends for them.
  2. Answer the following questions:
    1. Identify the pigments from your spectra
    2. What would you predict the order of chlorophyll bands to be on your chromatogram based on the structural difference between chl a and chl b?
    3. What would you predict the order of chlorophyll bands to be on your chromatogram based on the chromatography solvent system you used? Is your prediction supported?
  3. In your lab notebook, prepare a flow chart for the Hill Reaction (Lab 9).
  4. Review the mechanisms of electron transport and proton flow in photosynthesis in your textbook.
