Endy:F2620/Transfer Curve/Data

Figure - Average time evolution of the transfer curve of F2620 on pSB3k3 in MG1655. The surface shown is the mean of 6 clones. With +10min offset axis

time evolution of the transfer curve of F2620 on pSB3k3 in MG1655 for six different colonies - not recalibrated nor updated yet

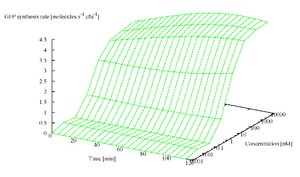

Average time evolution of the transfer curve of F2620 on pSB3k3 in MG1655. The surface shown is the mean of 6 clones.

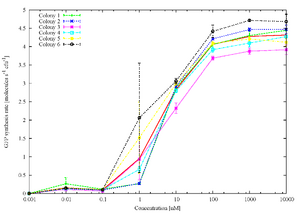

Individual transfer curves of the 6 clones at a single time point. Low/High Error bars

Individual transfer curves of the 6 clones at a single time point. Standard Deviation Error bars

• Transfer curve raw data part 1 (.xls)
• Transfer curve raw data part 2 (.xls)
• Processed transfer curve data for 8 colonies (.xls)
• Processed transfer curve data for 8 colonies-points only (.tvs)
• Processed master curve data -points only (.tvs)
• Processed master curve data -points and pdfs new (.zip)
