The amount of RNA recovered after a column purification is quite small. Thus, in the next step of SELEX, you must increase this small amount of RNA in a stable way. First (today) you will convert it to DNA and amplify it, using RT-PCR. Then (next time), you will perform a second in vitro transcription reaction to make more of the RNA mixture. For this process to work, the 6-5 and 8-12 sequences must amplify at the same rate, a fact that has been proven for these particular RNAs under the conditions that we are using.

The RT in RT-PCR here stands for reverse transcription, that is, making DNA from an RNA template. We will use a 1-step RT-PCR kit from Qiagen, though the two procedures (reverse transcription and PCR) can be performed separately. The Qiagen kit utilizes a cocktail of two different RT enzymes: Omniscript and Sensiscript, the latter optimized to detect very low abundance sequences. After reverse transcription, these enzymes are inactivated, and a heat-sensitive polymerase is activated so PCR can begin. In sum, the reactions will run for two hours, and we'll spend this time meeting with the writing across the curriculum faculty.

One somewhat unusual component in your RT-PCR reactions today is BSA, or bovine serum albumin. In the pilot experiments for this module we found that heme itself (which you used during your column elution last time) inhibits the RT-PCR! The inhibition may be due to hydrophobic interactions between heme and the polymerase; in any case, adding a hydrophobic protein such as BSA that should compete with this interaction seems to work. In Prof. Niles’s original work, he used a different RT-PCR kit that did not face this inhibition issue, which goes to show that sometimes very subtle factors are at play when an experiment goes wrong! Trouble-shooting is a key part of learning to do research.

Protoporphyrin IX. Public domain image from Wikimedia Commons.

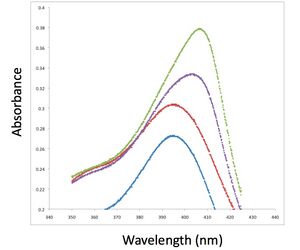

Sample heme binding curves. From top to bottom, the curves are 8-12, a mixture of 6-5 and 8-12, 6-5 — each with heme — and heme alone.

One week from now, you'll perform the aptamer-heme binding assay, so now is a good time to take a closer look at heme. Heme and similar compounds contain a large porphyrin or proto-porphyrin ring (see image above right). The functional unit of porphyrin is a pyrrole, an amine heterocycle; four pyrroles make up a porphyrin. As you may know, conjugated aromatic rings often exhibit interesting spectroscopic or fluorescent properties. Heme’s natural absorbance maximum, or Soret peak, is at about 396 nm. RNA molecules that do not bind heme do not affect the location of this maximum, though they may slightly shift the height of the entire curve. However, heme-binding aptamers shift the Soret maximum to about 405 nm, and also substantially increase the magnitude of the peak (see image above left).

Proptoporphyrin IX is the direct precursor to heme: the enzyme ferrochelatase adds a single iron ion to the center of the PPIX ring to make heme. Heme biosynthesis is interesting in its own right, as this system is an example of negative feedback (see original reference here (1966) and further reading here (1997)). In other words, an increased concentration of heme in a cell reduces further heme production. (How do you think such a system might work?) In total, 8 enzymes are required for heme biosynthesis, some acting in the cytoplasm and others in the mitochondria. Defects in heme pathway enzymes result in a series of diseases called “porphyrias,” some with severe neurological consequences; treatment can involve patient intake of heme to inhibit the defective synthetic pathway (see review at this link).

The heme group is part not only of hemoglobin, thus making it essential for oxygen transport, but also a part of many other proteins; heme often serves as an enzyme co-factor. Many heme-containing proteins are ultimately involved in electron transfer – made possible by the flexible charge state of the iron - as in cytochromes, catalases, peroxidases, and chlorophyll.


Part 1: Recover RNA

  1. Centrifuge your samples at max speed for 15 minutes.
    • You and partner can balance your tubes against each other.
  2. Collect the supernatants into a temporary waste bottle, such as a 15 mL conical tube.
  3. Add 1 mL of 70% ethanol to each sample, and vortex vigorously.
    • You should see the pellet come off the tube wall, but it will not be resuspended.
  4. Spin for two minutes at max speed.
  5. Repeat the wash step with 1 mL of fresh 70% ethanol.
  6. Dry your samples in the fume hood for 10 minutes.
  7. Resuspend each sample in 44 μL of RNase-free water by the following procedure:
    • Add the water to the sample, cap tightly, and vortex for 10-20 sec.
    • Quick-spin the samples in the microfuge.
    • Repeat the vortex and the spin steps one more time.
  8. Keep your RNA on ice.

Part 2: RT-PCR

  1. The thermal cycler will be preheated to 50 °C while you prepare your samples. This preparation is required for the procedure to work optimally.
  2. Set up your reactions on a cold block as usual. From one of the shared stocks, pipet 30 μL of Master Mix into each of two well-labeled PCR tubes.
    • In the interests of time and economy, we will not run control reactions this time. However, if you wanted to test for contamination of your reaction, what component(s) would you leave out?
  3. Add 20 μL of your recovered RNA to the Master Mix.
  4. The following thermal cycler program will be used:
Segment Cycles Temperature (° C) Time Purpose
1 1 50 30 min reverse transcription
2 1 95 15 min activate polymerase, deactivate RT enzymes, denature template
3-5 20 94 30 sec denature (PCR)
57 1 min anneal (PCR)
72 1 min extend (PCR)
4 1 72 7 min final extension

Part 3: WAC Session

Today's WAC session will be with the writing faculty.

Part 4:Run RT-PCR products on gel

Assuming there is time after the WAC session, you will prepare aliquots of your RT-PCR reactions with loading dye. The teaching faculty will then run your samples on a gel and post the images online. The reactions will be stored at -20 °C until next time.

  1. Prepare enough diluted loading dye for 2 reactions plus 10% excess.
    • The dilution should be 2.5 μL loading dye and 10 μL water per reaction.
  2. Put 12 μL of diluted loading dye into each of two eppendorf tubes, then add 10 μL of each reaction mixture to said tubes.

For next time

  1. Write a draft of the Introduction section of your report. See the specific assignment as well as general writing guidelines for suggestions about structure and content.
  2. Work on Part III of the computational assignment, and hand in a picture of the full-length 8-12 sequence with the requested highlighting.

Reagent list

  • Gel materials as on Day 2
  • RT-PCR Master Mix
Componenet Concentration Volume
Primers 0.6 μM each 1.5 μL of 20 μM stock, each
dNTPs 400 μM each 2 μL
Enzymes unknown 2 μL
Reaction buffer N/A (multi-component) 10 μL
Bovine serum albumin Not part of the kit, added by us Final [BSA] = 0.1 %, 0.5 μL added
Water N/A 12.5 μL
Template 1pg-2μg Added by students, 20 μL
