DESCRIPTION

MITUTOYO ID-C112B is a digital thickness gauge.

FEATURES

Resolution

0,001 mm

Range

0-12,7 mm


INSTRUCTIONS

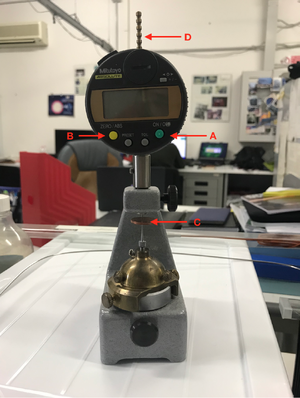

  1. Press the On Button A.
  2. Put tips C in contact by the rod D and press B to set the zero value.
  3. Move the upper tip by D and put the object between the to tips.
  4. Read on the monitor the thickness of the object.
