Objective

The goal of this experiment is to test the conductivity of MBP protein fibers containing AuNPs was tested using electrodes and a four point probe.

Procedure

  • A Teflon surface was obtained and a conductive epoxy was applied.
  • Palladium wire was placed on the epoxy.
  • Palladium foil was placed on top of the wire and epoxy.
  • The protein fibers containing Gold Nanoparticles were placed across the foils.
  • In Method 1, the areas of Palladium foil used were 35.20 mm2, 41.16 mm2, 40.18 mm2, 38.64 mm2.


Results

  • Method 1 was not successful as the set up did not dry overnight.

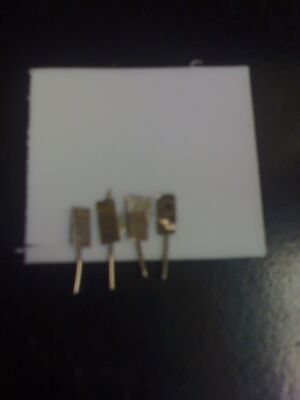

The resulting probe is as pictured:

Notes

The key advantage of four-terminal sensing is that the separation of current and voltage electrodes eliminates the impedance contribution of the wiring and contact resistances.
