My Project

Contents

Construction Files

SBB30: 5'UTR_rep009

Biobricking of O99 rep Gene
PCR JG001-F and JG002-R on pEC52      (1235 bp, EcoRI/BamHI)
Sub into pBca9523-Bca1144             (EcoRI/BamHI, 910+2472, L)
Product is pBca9523-sbb30    {5'UTR_repO99!}
----------------------------
JG001-F   Cloning of O99 rep Gene
ccataGAATTCatgAGATCTaaaaacgattctgacgcattttttatg
JG002-R   Cloning of  O99 rep Gene
CTGATGGATCCCTACTCTACAAGACCTCGTTTTttc

SBB38: PBad Promoter

Eco/Bam transfer pBjh1601CK-ig114
Sub into pBjk2741-Bca1144                      (EcoRI/BamHI, 910+2170, L)
Product is pBjk2741-ig114   {AraC-Pbad}

SBB37: PCon Promoter

Eco/Bam transfer pBca1100-Bca1152
Sub into pBjk2741-Bca1144                      (EcoRI/BamHI, 910+2170, L)
Product is pBjk2741-Bca1152   {Pcon-J23100}

Parts Assembly

2/17/10

Objective: Set up PCR reaction for biobricking of SBB30 009 rep Gene -PCR JG 001-F & JG002-R on pEC52 (1235 bp Eco/Bam)

Procedure:

  1. convert Oligos to 100uM [X(nmol) + 10*X(ul)]
  2. dilute stock Oligos to 10uM
  3. PCR Procedure

2/17/10

Objective: Run Analytical gel on SBB30 (JG01), after confirmation run zymo cleanup
Expected Length (1235 bp)
Results:

Dorothy

Image:DDT_02_22_10.jpg Image:Generuler1kbplus.jpg
Lanes

  1. ladder
  2. 28
  3. 29
  4. sbb25
  5. sbb26
  6. sbb32
  7. sbb34
  8. JG1
  9. ZHH 1,2 AG
  10. TN 001/002 PT
  11. JHA
  12. JHB
  13. JHC

PCR product confirmed, continue to Zymo Cleanup

2/24/10

Eco/Bam Digest of SBB30 PCR products

3/1/10

To Do List:
Zymo gell purification of SBB30 Eco/Bam Digest


Eco/Bam transfer pBjh1601CK-ig114
Sub into pBjk2741-Bca1144 (EcoRI/BamHI, 910+2170, L)
Product is pBjk2741-ig114 {AraC-Pbad}


Eco/Bam transfer pBca1100-Bca1152
Sub into pBjk2741-Bca1144 (EcoRI/BamHI, 910+2170, L)
Product is pBjk2741-Bca1152 {Pcon-J23100}

Ligation's:
SBB30 (vector:pBca9523, start: 2:35, end: 3:07)
SBB38 (vector:pBjk2741, start: 3:10, end: 3:40)
SBB37 (vector:pBjk2741, start: 3:10, end: 3:40)


Transformation of Ligation products into competent cells

3/3/10

pick colonies (already done)

  • Note: SBB 37 was mostly red colonies on plate only two possible good colonies on plate, probably due to re-ligation of original vector also SBB37 is small which might make Eco/Bam transfer fail, other plates looked good

Mini Prep picked colonies (4 SBB30, 4 SBB38, 2 SBB37) from plates

3/8/10

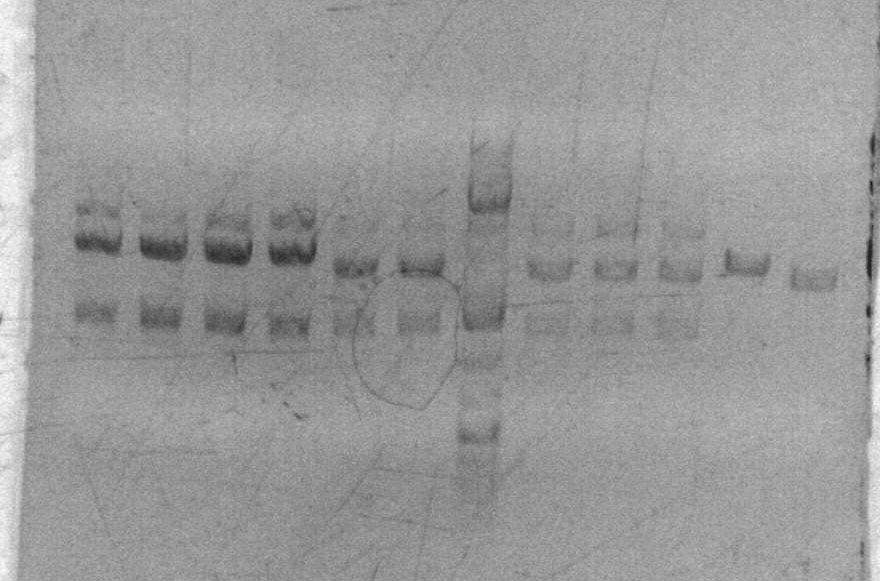

To Do: Run analytical gel of miniprep plasmids
- Eco/Bam Digest of miniprep plasmids
-run analytical get of digests, Expected product lengths: SBB30(1235 bp); SBB 38 (1253, 2170 bp); SBB37(2170, 50 bp)
Results:

Jose Gutierrez

  1. JG1a(SBB30)
  2. JG1b
  3. JG1c
  4. JG1d
  5. JG2a(SBB 38)
  6. JG2b
  7. Ladder
  8. JG2d
  9. JG3a(SBB 37)
  10. JG3b

Image:JGgell.jpg Image:Generuler1kbplus.jpg

  • notes: SBB37 was too small of a fragment so should have been digested with Eco/BglI not Eco/Bam.

Clotho Entry:
Plate A: A2=JG1A, H1=JG1B
Plate B: A2=JG1B, H1=JG1C

3/10/10

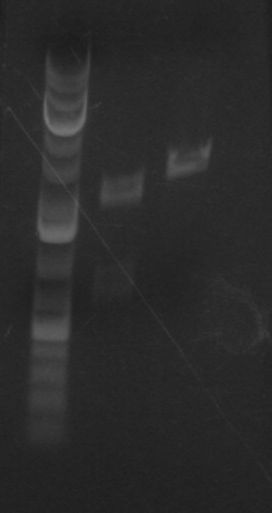

To Do: Run analytical gel of miniprep plasmids (JG3A,JG3B)
- Eco/BglI Digest of miniprep plasmids <br. -run analytical get of digests, Expected product length (1536/ 684 bp) Results:

Jose Gutierrez

  1. ladder
  2. JG3A
  3. JG3B

Image:JGgel.jpg Image:Generuler1kbplus.jpg

  • notes: 3A could have worked, 3B did not work

Clotho Entry:
Plate A: H2=JG3A,
