VM2.0 regulation design considerations

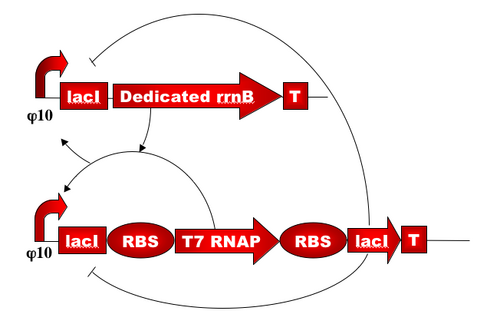

| Error creating thumbnail: convert: unable to open image `/data/web/storage/wikis/openwetware12/images/9/94/BC-VM20Regulation.png': No such file or directory. convert: unable to open file `/data/web/storage/wikis/openwetware12/images/9/94/BC-VM20Regulation.png'. convert: missing an image filename `/data/web/storage/wikis/openwetware12/images/thumb/9/94/BC-VM20Regulation.png/500px-BC-VM20Regulation.png'. |
- Stability
- Noise
- analytical stability analysis on very simple model or Routh-Hurwitz analysis for full model
- parameter sensitivity analysis
- Response time
- Better to have this fast or slow (slow response time averages out short time scale fluctuations)
- Noise
- Self-booting/controlled
- Ability to turn on or off
- Portability
- Tunable
- Pros and cons of DNA copy number, promoter strength, repressor affinities etc.
- Efficient
- Minimizing levels of repressor needed
- Minimizing consumption of small molecules
Reduced Model

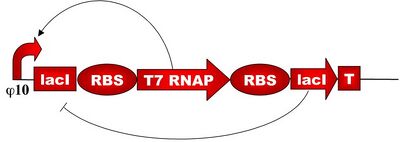

| Error creating thumbnail: convert: unable to open image `/data/web/storage/wikis/openwetware12/images/3/37/BC-VM20RegulationReduced_Model.jpg': No such file or directory. convert: missing an image filename `/data/web/storage/wikis/openwetware12/images/thumb/3/37/BC-VM20RegulationReduced_Model.jpg/400px-BC-VM20RegulationReduced_Model.jpg'. |
- Two species, RNAP (activator) and repressor
- Continuous differential equations
- MATLAB
- Dimensionless variables, lumped parameters.
- Parameterized for T7 RNAP, "typical" repressor
Failed to parse (Missing texvc executable; please see math/README to configure.): \dot{[u]} = \frac{a_{0}+a_{1}[u]}{1+[u]+[v]^{n}}-[u]\qquad(1)
Failed to parse (Missing texvc executable; please see math/README to configure.): \dot{[v]} = \frac{b_{0}+b_{1}[u]}{1+[u]+[v]^{n}}-[v]\qquad(2)
Failed to parse (Missing texvc executable; please see math/README to configure.): \displaystyle [u]
= dimensionless concentration of T7 RNAP
Failed to parse (Missing texvc executable; please see math/README to configure.): \displaystyle [v]
= dimensionless concentration of repressor
If I assume that the two species are expressed in a constant ratio (i.e polycistronic expression or under promoters of proportional strength and have similar degradation rates) then the two equations can be reduced to one -
Failed to parse (Missing texvc executable; please see math/README to configure.): \dot{[u]} = \frac{a_{0}+a_{1}[u]}{1+[u]+r[u]^{n}}-[u]\qquad(3)
Big questions to answer
- What are the steady state levels of RNAP/Repressor as a function of parameters?
- Setting the LHS of Equation 3 to 0 and solving for the steady state level, Failed to parse (Missing texvc executable; please see math/README to configure.): \displaystyle u_{ss}
with Failed to parse (Missing texvc executable; please see math/README to configure.): \scriptstyle n=2
and ignoring small terms, the (single) fixed point, is Failed to parse (Missing texvc executable; please see math/README to configure.): u_{ss} = \frac{\sqrt{a_{1}}}{r}
- What is the material usage like?
- What happens when RNAP level drops suddenly (e.g. when another T7 reporter in the cell is derepressed.)
Reduced model results

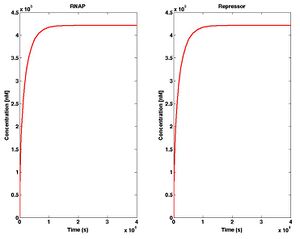

| Error creating thumbnail: convert: unable to open image `/data/web/storage/wikis/openwetware12/images/c/c3/BC-VM20TimeCourse.jpg': No such file or directory. convert: missing an image filename `/data/web/storage/wikis/openwetware12/images/thumb/c/c3/BC-VM20TimeCourse.jpg/300px-BC-VM20TimeCourse.jpg'. |

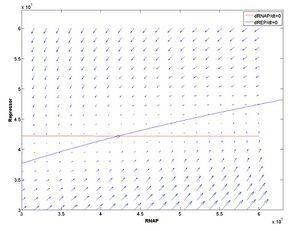

| Error creating thumbnail: convert: unable to open image `/data/web/storage/wikis/openwetware12/images/2/29/BC-VM20FixedPoint.jpg': No such file or directory. convert: missing an image filename `/data/web/storage/wikis/openwetware12/images/thumb/2/29/BC-VM20FixedPoint.jpg/300px-BC-VM20FixedPoint.jpg'. |
Species
- T7 RNAP
- Repressor
- Ribosomes
- Repressible T7 promoter
- T7RNAP-promoter complex
- Repressor-promoter complex
- T7 RNAP mRNA
- Repressor mRNA
- Elongating T7 RNAP
- Elongating Ribosomes
- etc.
Model analysis notes
- A cooperative autogene network can exhibit bistability or monostability depending on parameter values (7.81). Does this apply if there is no cooperativity?
