Peptide Lock

All chemicals were purchased from Sigma-Aldrich and used without further purification unless otherwise stated. Solvents were employed as HPLC-grade and anhydrous solvents were purchased in Sure/Seal bottles with inert atmosphere or dried using a MBRAUN MB SPS-800 Solvent Purification System. Reactions were carried out under argon atmosphere and with flame dried glassware unless otherwise stated. Organic reactions were monitored by thin-layer chromatography (TLC) whenever possible and flash chromatography (FC) was carried out on Silica gel 60 (230-400 mesh). NMR spectra were recorded on a Bruker Avance III HD system connected to a 400 MHz Bruker Ascend magnet. Chemical shifts are reported in ppm and corrected according to the solvent residual peak. [1] Coupling constants (J ) are reported in Hz. Mass spectra of small molecules were obtained on a Bruker Maxis Impact (ESI-TOF) using a Dionex Ultimate 3000 RS (HPLC) as interface. Melting points were obtained on a BÜCHI Melting Point B-540 system and reported uncorrected. H2O used for DNA experiments was purified on a Milli-Q Biocel system by Millipore, and abbreviated as MQ. DNA oligonucleotides were synthesised in house on a BioAutomation MerMade-12 automated oligonucleotide synthesiser using reagents, standard and special phosphoramidites, and preloaded 1000 Å CPG columns purchased from BioAutomation in Texas. Synthesized oligonucleotides were cleaved from the solid-support either using 33% ammonium hydroxide solution or AMA (Ammonium hydroxide/aqueous methylamine 1:1 v/v). BioAutomation MerMade-12 automated oligonucleotide synthesiser was washed with dry solvents (DCM, DMSO, MeCN) before each experiment in order to keep the pipes clean and dry. All DNA concentrations were determined using a Nanodrop ND-1000 spectrophotometer. Mass spectra of oligonucleotides were either obtained on a Bruker Daltonics Auto ex Speed MALDI-TOF MS spectrometer using AnchorChip target plates, or on a Shimadzu LCMS-2020EV connected to a Shimadzu Prominence RP-UPLC system equipped with a Phenomenex Gemini 3u C18, 100 mm x 4.6 mm column and running a gradient of MeOH in 1,1,1,3,3,3-hexauoroisopropanol/triethylamine buffer (HFIP, 100 mM / TEA, 8 mM). All LCMS measurements are performed in linear negative mode. The matrix used for MALDI-TOF MS was 90% 3-hydroxypicolinic acid (50 mg/mL) in H2O/MeCN 1:1 and 10% diammonium citrate (50 mg/mL) in H2O. All MALDI experiments were performed in linear negative mode unless otherwise stated. Dynamic light scattering experiments were performed on a Zetasizer Nanoseries ZS, using the provided Zetasizer software and cuvettes. For gel analysis, a Typhoon Trio with the provided Variable Mode Imager software were used.

Solid Phase Peptide Synthesis

Synthesis of (S)-2-((tert-butoxycarbonyl)amino)-5-methoxy-5-oxopentanoic acid [2]

Figure 63. (S)-2-((tert-butoxycarbonyl)amino)-5-methoxy-5-oxopentanoic acid
Figure 63. (S)-2-((tert-butoxycarbonyl)amino)-5-methoxy-5-oxopentanoic acid



(S)-2-((tert-butoxycarbonyl)amino)-5-methoxy-5-oxopentanoic acid (0.100 mg, 0.6 mmol, 1 eq.) was dissolved in 1,4-dioxane (10 mL) in a roundbottomed flask with magnetic stirrer. Hereafter DIPEA (0.2 mL, 1.2 mmol, 2 eq.) was added and after 5 min Fmoc-OSu (0.330 mg, 1.0 mmol, 1.7 eq.) was added. The resulting mixture was stirred for 5 hours until the reaction was judged finished by TLC. The mixture was concentrated in vacuo and stored overnight. The mixture was redissolved in DCM (5 mL) and purified by FC (SiO2, DCM/EtOAc 1:1 v/v, 15 mL fractions). The product was isolated as a yellow solid (1) (0.206 mg, 0.5 mmol, 87 %).

1H NMR (400 MHz, CDCl3): δ 9.41 (br. s, OH), 7.77 (d, J= 7.4, 2H), 7.60-7.59 (m, 2H), 7.41 (t, J= 7.3, 2H), 7.32 (t, J= 7.3, 2H), 5.62 (d, J= 7.7, NH), 4.54- 4.42 (m, 3H), 4.23 (t, J= 6.7, 1H), 3.69 (s, 3H), 2.54-2.41 (m, 2H), 2.32-2.29 (m, 1H), 2.10-2.05 (m, 1H); 13C NMR (100 MHz, CDCl3): δ 176.3, 173.9, 156.6, 143.9, 141.6, 128.1, 127.4, 125.4, 120.3, 67.6, 53.6, 52.3, 47.4, 30.4, 27.5; HRMS (ES) m/z: [M+Na]+ calcd. for C21H21NO6, 406.1261; found: 406.1265; MP 116.4 - 117.0 °C (DCM/EtOAc 1:1).

1H NMR and 13C NMR

Synthesis of peptides

All peptide synthetic work was performed by Erik H. T. Nielsen, group of Organic Synthesis, Department of Chemistry and iNANO, Aarhus University.

4-pentynoyl-GPLGIAGE(OMe)G-ol

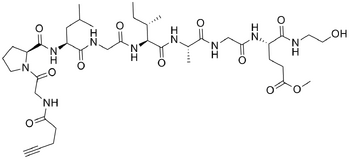

Figure 64. 4-pentynoyl-GPLGIAGE(OMe)G-ol
Figure 64. 4-pentynoyl-GPLGIAGE(OMe)G-ol


The peptide was synthesised on an ABI 433A automated peptide synthesiser employing the Fmoc/tBu strategy on a 0.1 mmol scale using a H-Gly-ol-2CT resin (0.50mmol/g). Deprotection was performed using 20% piperidene/DMF for 2x2 minutes. All positions was double coupled using 5 eq. Fmoc-Aa-OH, 4.9 eq. HCTU, 10 eq. N-methyl morpholine for 2x2 minutes, except for the alkyne which was introduced manually using 5 eq. pent-4-ynoic acid, 5.1 eq. DIC, 5 eq. Oxyma in DMF for 30 mins. Drydown of the sample was performed by washing with DMF (3x), DCM (3x) and Et2O (3x) followed by drying in vacuo. Cleavage was performed by subjecting the protected peptidyl-resin to a mixture of TFA/DCM/TIPS (48.75%/48.75%/2.5%, v/v, 5ml) for 30 mins. The filltrate was concentrated to 1 ml and the peptide was precipitated with ice-cold TBME, centrifuged, decanted (3 times) and dissolved in 5 ml H2O/MeCN 1:1 and lyophilized (crude yield; 83mg.). Next the crude peptide was dissolved in H2O/MeCN (95%/5%, 9ml) and purified employing a linear gradient of 5-50% MeCN (0.1% TFA), over 25 mins, at 5ml/min on a Jupiter C18 250x10mm, 300 Å, 5 μm column, yielding 35 mg of product displaying a purity of 98%.

MALDI-TOF MS:

m/z calcd. for C39H63N9NaO12 [M+Na]+, 872.45; found 872.75.

RP-HPLC: tR = 8.83 min. (Agilent Poroshell 120 EC-C18 (4.6 x 150 mm, 2.7 μm, 120 Å) 5-90% MeCN over 15 min.)

4-pentynoyl-GPLGIAGQG-OH

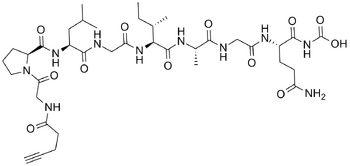

Figure 65. 4-pentynoyl-GPLGIAGQG-OH
Figure 65. 4-pentynoyl-GPLGIAGQG-OH

The peptide was synthesized on a ABI 433A automated peptide synthesizer employing the Fmoc/tBu strategy on a 0.1 mmol scale using a H-Gly-2CT resin (0.70mmol/g). Deprotection was performed using 20% piperidene/DMF for 2x2 minutes. Couplings were conducted using 5 eq. Fmoc-Aa-OH, 5 eq. DIC, 5 eq. Oxyma Pure for 20 minutes. Drydown was performed by washing with DMF (3x), DCM (3x) and Ether (3x) followed by drying in vacuo. Cleavage was performed by subjecting the protected peptidyl-resin to a mixture of TFA/DCM/TIPS (48.75%/48.75%/2.5%, v/v, 5ml) for 30 mins. The filtrate was concentrated to 1 ml and the peptide was precipitated with ice-cold TBME, centrifuged, decanted (3 times) and dissolved in 5 ml H2O/MeCN. The crude peptide was purified employing a linear gradient of 5-50% MeCN (0.1% TFA), over 25 mins, at 5ml/min on a Jupiter C18 250x10mm, 300 Å, 5 μm column, yielding 29 mg of product displaying a purity of 98%.

MALDI-TOF MS:

m/z calcd. for C38H60N10NaO12 [M+Na]+ 871.43; found 872.10.

RP-HPLC: tR = 7.35 min. (Phenomenex Aeris peptide XB-C18, 4.6x150mm, 3.6μm, 100Å, 2ml/min, 5-90% MeCN over 15 mins).

Automated Oligonucleotide Synthesis

Peptide Coupling - peptide activation and DNA activation

For peptide coupling with phosphoramidite activated DNA, the peptide (5.5 mg) was dissolved in anhydrous DMSO (1 mL). For the peptide pre activation experiment, the peptide (5.1 mg, 6.5 μmol, 1 eq.) was dissolved in DMSO (1 mL) to which N,N-diisopropylchlorophosphoramidite in DCM (0.25 mL 35 mM, 7.8 μmol, 1.2 eq.) and DIPEA in DCM (0.25 mL 31 mM, 7.8 μmol, 1.2 eq.) was added. The automated oligonucleotide synthesiser was setup to the following sequence:

3'-AAGTGGCGTCTATATCCAGAAATCG-peptide

Mermade setup; phosphoramidite activated peptide The activated peptide (approx. 0.140 mL) (in 2 steps) was automatically added onto the column. Hereafter wash (1x), capping (1x), wash (1x), oxidize, wash (2x) detritylation (1x) steps were performed, likewise automatically.

Mermade setup: phosphoramidite activated DNA For coupling of peptide with phosphoramidite activated DNA, DIPEA and phosphoramidite in DCM (approx. 0.375 mL each, added in 5 steps of 30 sec.), wash (3x), peptide (approx. 0.140 mL ) was added to the column, afterwards washing (2x), oxidise (1x), wash (2x) and detritylation (1x) finishing with a wash (1x).


DNA activated coupling and peptide activated coupling solid phase was incubated with NH4OH (1 mL) for 2 hours at 65 °C. NH4OH was removed in vacuo and the pellet was dissolved in MilliQ (0.5 mL), spun/vortexed 3 times and purified through 3k spinfiltration. MALDI-TOF and LCMS analysis was performed. The calculated mass is for the truncated DNA (AAGTGGCGTCTATATCCAGAAATCG).

MALDI-TOF MS m/z:

Mass calcd. for C245H307N97O146P24 [M+H]+, 7691.00. Found 7692.51.

LCMS m/z:

Mass calcd. for C245H307N97O146P24 [M+H]+, 7691.00. Found 7691.16.

DNA activated Peptide Coupling - click reaction with small organic molecule

The sequence setup on the automated oligonucleotide was:

3'-AAGTGGCGTCTATATCCAGAAATCG-peptide-CGTACTATTCGACTCTCAAG-5'

For the click reaction two conditions were used. A solution of 10 mM 2- (2-(2-azidoethoxy)ethoxy)ethanol, 2 mM ascorbate, 500 μM TBTA and 100 μM CuSO4·5H2O was prepared in a 1:1:0.6 tBuOH:MQ:DMSO and 1:0.3 MQ:DMSO mixture respectively. Different approaches were attempted in order to achieve the coupling.

First approach the mixture was injected onto the column over the course of 2.5 hours. But according to the runlog of the automated olignucleotide synthesiser 3 mL of the above mentioned mixtures was used. Due to the viscosity of DMSO a smooth flow could not be obtained, and only 1 mL of mixture was injection onto column according to visual approximations. Second approach the column was removed from the automated oligonucleotide synthesis machine after the initial strand synthesis had finished, incubated with click reaction mixture o.n. and added onto the column again. Third approach the column was removed from the automated oligonucleotide synthesis machine after the initial strand synthesis had finished, with a syringe a flow of click reaction mixture was forced through the coloum several times a day before the column was placed onto the machine for further oligonucleotide synthesis.

The synthesis of the remaining oligonucleotides was initiated with 3 washes and a deblock step.


Mermade Setup; For coupling of peptide with phosphoramidite activated DNA, DIPEA and phosphoramidite in DCM (approx. 0.375 mL each, added in 5 steps over 30 sec.), wash (3x), peptide (approx. 0.140 mL ) was added to the column, afterwards washing (2x), oxidise (1x), wash (2x) and detritylation (1x) finishing with a wash (1x). DNA activated coupling and peptide activated coupling CPG coloums were incubated with NH4OH (1 mL) for 2 hours at 65 °C. NH4OH was removed in vacuo and the pellet was dissolved in MQ (0.5 mL), spun/vortexed 3 times and purified through 3k spinfiltration.

Synthesis of DNA strands

Amine modified DNA strands

3' amine modified 20 mer: 3'- CGTACTATTCGACTCTCAAG-5'

5' amine modified 25 mer: 3'-AAGTGGCGTCTATATCCAGAAATCG-5'

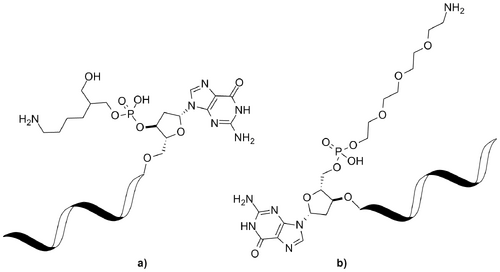

Figure 66. a) 3' modified 20 mer, b) 5' modified 25 mer
Figure 66. a) 3' modified 20 mer, b) 5' modified 25 mer

5' amino modification was achieved by treatment with 5'MMT-amino-modified-11-CE-phosphoramidite as the final step of the synthesis. 3'amino modification was achieved by using 3'-amino-modifer C7 CPG 1000. Provided by Link technologies [1] Standard conditions for automated oligonucleotide synthesis was used. The product mixture was cleaved off solid support using NH4OH at 65 °C for 2 hours. 3' amino modified DNA strand was purified by TOP column chromatography and precipitated in ethanol. 5' amino modified DNA strand was purified trough ethanol precipication. The supernatant of the probes were decanted off and the samples were lyophillized o.n. The resulting mixture was redissolved in 400 μL MQ.

MALDI-TOF MS: m/z:

20mer calcd. for C201H263N71O123P20 [M+H]+; 6259.13. Found 6261.49.

25mer calcd. for C253H325N98O152P25 [M+H]+; 7942.42. Found 7937.85.

Azide Modified DNA strands

Figure 67. Azide modified 25 mer
Figure 67. Azide modified 25 mer

To amine modified DNA strand (10 μL, 1 mM in MQ) were added MQ (40 μL), NHS-azide (50 μL, 50 mM in DMF), MeCN (50 μL) and DIPEA (μL) and the reaction was incubated at rt. overnight. The DNA was precipicated in ethanol. The supernatant was decanted of and the resulting mixture was dried in vacuo prior to redissolvation in MQ (200 μL).

Maldi-TOF MS m/z:

25 mer. calcd. C258H332N101O153P25 [M+H]+: 8066.47. Found: 8063.28.

Template DNA strand

Following sequence was setup on the automated oligonucleotide synthesizer:

3'-CTTGAGAGTCGAATAGTACGTTTTTTTTCGATTTCTGGATATAGACGCCACTT-5'

Standard conditions and reagents are used. The strand was purified on top coloum, precipicated in ethanol, lyophillized o.n. and redissolved in 100 μL MQ.

MALDI-TOF MS: m/z:

Mass calcd. for C521H658N184O325P52 [M+H]+; 16308.70. Found 16314.55.

CuAAC peptide and azide modified DNA

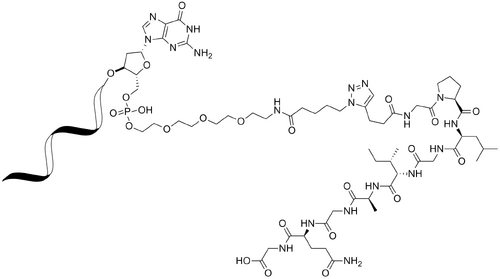

Figure 68. DNA-peptide conjugate
Figure 68. DNA-peptide conjugate

For the experiment the final concentrations were as follows: 1 nmol DNA-azide, 100 nmol pepide, 500 μM TBTA, 100 μM Cu, 2 mM ascorbate. 2 mM TBTA (2:1 tBuOH, DMSO), 10 mM peptide solution (MQ) 10 mM ascorbate (MQ) and 5 mM CuSO4 (MQ) were freshly prepared. Only if the solution was freshly prepared a yellow colour was observed due to the reduction of copper.

CuSO4 (4μL, 2mM) was mixed with ascorbate (40 μL, 10 mM) and TBTA (50 μL, 2 mM). After 5 min the mixture was added to the solution of 25 mer DNA azide (1 nmol, 43 μL, 23.1 yM) and peptide (100 nmol, 10 μL, 10 mM) were added. Furthermore were DMSO (50 μL) and MQ added for a total volume of 200 μL added. The solution was incubated overnight at rt. The mixture was precipitated in ethanol, supernatant was decanted off and the resulting pellet was dried in vacuo before redissolvation in MQ (200μL). The results were analyzed on MALDI-TOF.

MALDI-TOF MS m/z:

Mass calcd. for C296H392N111O165P25 [M+H]+: 8919.27. Found 8918.15.

Templated amide bond formation

The reaction conditions are based on literature [3]. EDC/Sulfo NHS; 60 nM template, 120 nM reagent, 20 mM EDC, 15 mM Sulfo-NHS, 0.1 M MES ph 6 buffer, 1 M NaCl. The total volume was 20μL.DM-TMM; 60 nM template, 120 nM reagent, 50 mM DM-TMM, 0.1 MOPS ph 7 buffer, 1 M NaCl. The total volume was 20μL. The reagents where mixed and incubated at rt. O.N. The resulting mixture was concentrated in vacuo, redissolved in MQ. Loading buffer (native, sucrose+orangeG. denaturating, urea+orangeG) was added in 1:1 ratio with reaction mixture. The mixture was loaded onto the respective gels (10% acrylamide).

The gels were after completion washed several times, stained with SYBr gold and visualized on the typhoon scanner.

References

  1. H. E. Gottlieb et al. NMR Chemical Shifts of Common Laboratory Solvents as Trace Impurities. J. Org. Chem. 62 7512-7515 (1997). [1] [Gottlieb]
  2. H. A. Behanna et al. Coassembly of amphiphiles with opposite peptide polarities into nanofibers. J. Am. Chem. Soc. 127, 1193-1200 (2005). [1]

    [Behanna]

  3. Z. J. Gartner et al. Expanding the reaction scope of dna-templated synthesis. Angew. Chem. Int. Ed, 41, 1796-1800 (2002). [1]

    [Gartner]
