CFS with SWNTs

AFM

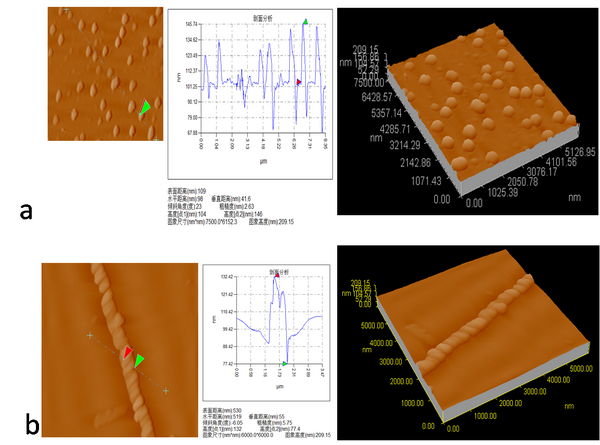

Fig 4.AFM analysis of MreB-RFP cell-free aggregation with SWNTs, indicating that SWNTs serve as scaffolds in the spiral winding of fusion proteins in vitro. a). AFM image of fusion protein MreB-RFP without SWNT scaffold, protein aggregated in disorder and only discrete spherical particles were formed. b). AFM image of fusion protein MreB-RFP at the presence of SWNT, protein aggregated and wound spirally onto the surface of nanotube.
Fig 4.AFM analysis of MreB-RFP cell-free aggregation with SWNTs, indicating that SWNTs serve as scaffolds in the spiral winding of fusion proteins in vitro. a). AFM image of fusion protein MreB-RFP without SWNT scaffold, protein aggregated in disorder and only discrete spherical particles were formed. b). AFM image of fusion protein MreB-RFP at the presence of SWNT, protein aggregated and wound spirally onto the surface of nanotube.

SEM

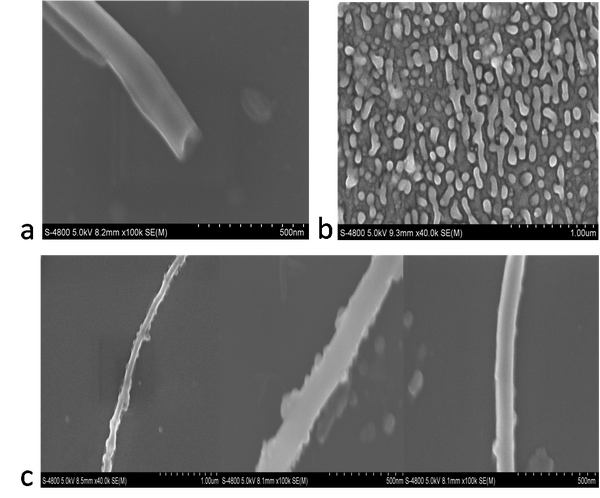

Fig 5. SEM analysis of MreB-RFP cell-free aggregation with SWNTs. a). SEM image of SWNT, the sidewall of nanotube is smooth without any absorption or aggregation. b). SEM image of MreB-RFP without scaffold, protein aggregated in disorder and only discrete spherical particles were formed. c). SEM image of fusion protein at the presence of SWNT, protein  aggregated and wound spirally onto the surface of nanotube.
Fig 5. SEM analysis of MreB-RFP cell-free aggregation with SWNTs. a). SEM image of SWNT, the sidewall of nanotube is smooth without any absorption or aggregation. b). SEM image of MreB-RFP without scaffold, protein aggregated in disorder and only discrete spherical particles were formed. c). SEM image of fusion protein at the presence of SWNT, protein aggregated and wound spirally onto the surface of nanotube.

TEM

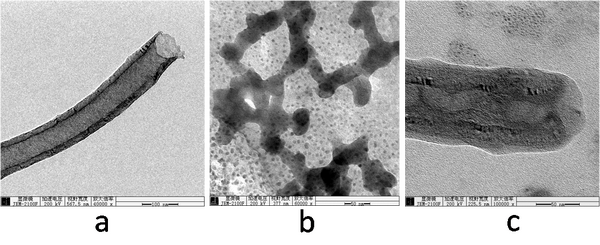

Fig 6. TEM analysis of MreB-RFP cell-free aggregation with SWNTs. a). TEM image of SWNT, the sidewall of nanotube is smooth without any absorption or aggregation. b). TEM image of MreB-RFP without scaffold, protein aggregated in disorder and only discrete spherical particles were formed. c). TEM image of fusion protein without SWNT scaffold, protein  aggregated and wound spirally onto the surface of SWNT.
Fig 6. TEM analysis of MreB-RFP cell-free aggregation with SWNTs. a). TEM image of SWNT, the sidewall of nanotube is smooth without any absorption or aggregation. b). TEM image of MreB-RFP without scaffold, protein aggregated in disorder and only discrete spherical particles were formed. c). TEM image of fusion protein without SWNT scaffold, protein aggregated and wound spirally onto the surface of SWNT.

Fluorescence micrograph

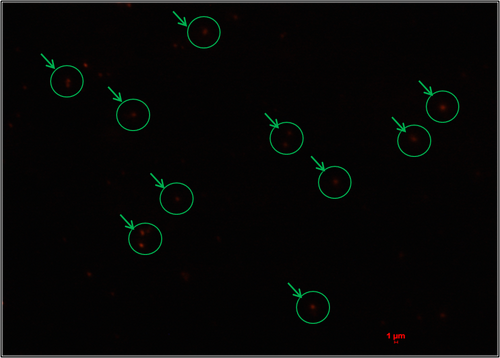

Fig 7. Fluorescence micrograph of fusion protein MreB combined with SWNT. Red fluorescence can be observed, indicating the activity of fusion protein were reserved.
Fig 7. Fluorescence micrograph of fusion protein MreB combined with SWNT. Red fluorescence can be observed, indicating the activity of fusion protein were reserved.

Conclusion

  • RFP tagged E. coli actin-like cytoskeleton filaments were cell-free synthesized.
  • In vitro behaviors of E. coli actin-like cytoskeleton filaments were well characterized via both microfluidics and SWNTs, which proved our previous hypothesis.


Prospect

“Bottom-up” strategy to build up artificial cell surrogates

  • We successfully synthesized the actin-like cytoskeleton filaments in cell-free system and assembling components to create artificial cell surrogates. Bionanotechnology and microfluidics technology are also combined to artificially mimic the synthesis of subcellular structural unit which might contribute to recognizing, exploring and even creating life.

Cell free system for study on modular organism

  • Normally the study of exogenous genes and proteins could be conducted in certain modular organism like E. coli and yeast. However, the research of structure and lethal components in modular organism sometimes comes to a dilemma, as we cannot find a better chassis, and the commonly-used methods such as deletion is not applicable any more. Here, cell free synthesis of MreB, originated from E.coli, facilitated the protein characterization.

Biological compatibility

  • It has been already discovered that CNTs (carbon nanotubes) are poisonous to many kinds of microorganisms. With the aggregation and spirally binding of filamentous cytoskeleton protein MreB on SWNTs (single-walled carbon nanotubes), their surface physical and chemical properties are enormously modified. With further characterization, this kind of SWNTs may become more compatible to microorganisms, even, and serves as comprehensive nanomaterials in more application areas.

Biosensor

  • In recent years, with the development of immobilized microorganisms technology, the microbial electrode has come up with the advantage of stable quality and relatively low cost. However, there is still no report about the use of CNT in the construction of microbial electrode. In our project, the SWNTs could be covered by MreB protein and then connected with biomembrane. Thus, there will be a hope to combine SWNTs with living microorganisms, and to create of a new kind of coupling way of intracellular enzyme reaction and electrochemical process.
