Check out the manual located on /Volumes/data9/surfaces/FreeSurferManual6Oct00.pdf for instructions on how to manually segment the white matter.


Surface files can be converted using AFNI 's ConvertSurface program or Caret 's Import feature.


Contents

Configuring Freesurfer

  source /Applications/freesurfer/SetUpFreeSurfer.csh

Then set the subject's directory

  setenv SUBJECTS_DIR /surfaces/subject_name/

Creating Flat Maps

Creating Patch

Run tksurfer to define cuts for either the right hemisphere (rh) or left hemisphere (lh):

  tksurfer subjID $h inflated

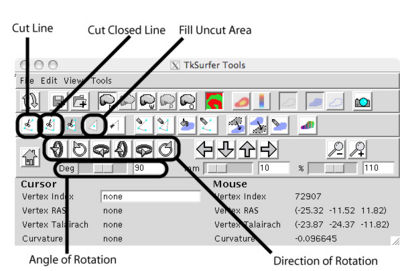

The important buttons on the TkSurfer window are shown below:

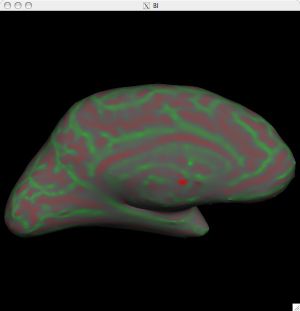

  • Show the curvature ($h.curv) by clicking on File-> Curvature->Load Curvature... It should look like this:

  • Left click points on the surface and then click the cut icon (scissors with an open triangle for a line cut). Points can be erased by right clicking on the surface twice.

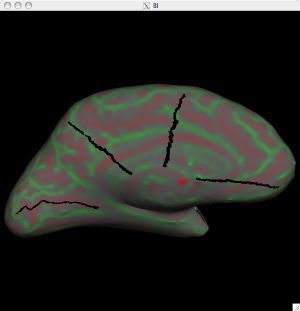

  • Make 1 cut down the calcarine sulcus and 3 equally spaced cuts on the medial wall. In addition, 1 sagitally oriented cut must be made around the temporal pole.
  • To rotate to the temporal pole you should first change the angle of rotation.

  • A final cut must be made to encircle the midline region. This area includes the corpus callosum and mid-brain structures.
  • Make sure the points are clicked in order around the region. Also do not click within the previous cuts (you will end up selecting points on the opposite side of the surface).

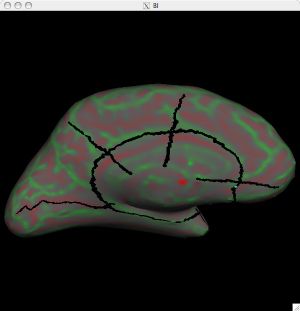

  • Click the cut closed line icon to create the cut.

  • Click outside the midline region and click the Fill Uncut Area button.

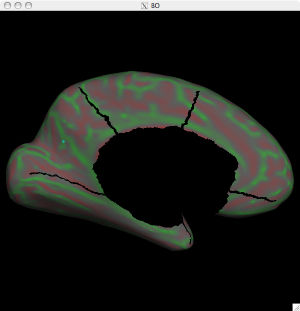

  • Save the patch by clicking File->Patch->Save Patch As. The default names for these files are $h.full.patch.3d


https://surfer.nmr.mgh.harvard.edu/fswiki/FreeSurferOccipitalFlattenedPatch

Using mris_flatten

Flat surfaces can be made from patch files using mris_flatten on Tim's computer:

  mris_flatten -w 10 lh.full.patch.3d lh.full.flat.patch.3d

Unfolding takes a few of hours and it is advisable to have the -w 10 to check the progress of the program every 10 iterations.

https://surfer.nmr.mgh.harvard.edu/fswiki/mris_5fflatten

Converting to asc Format

Use mris_convert with the -p option:

  mris_convert -p lh.full.flat.patch.3d lh.full.flat.patch.3d.asc


The lh.orig file from the surf directory needs to be in the same directory as the 3d file.
