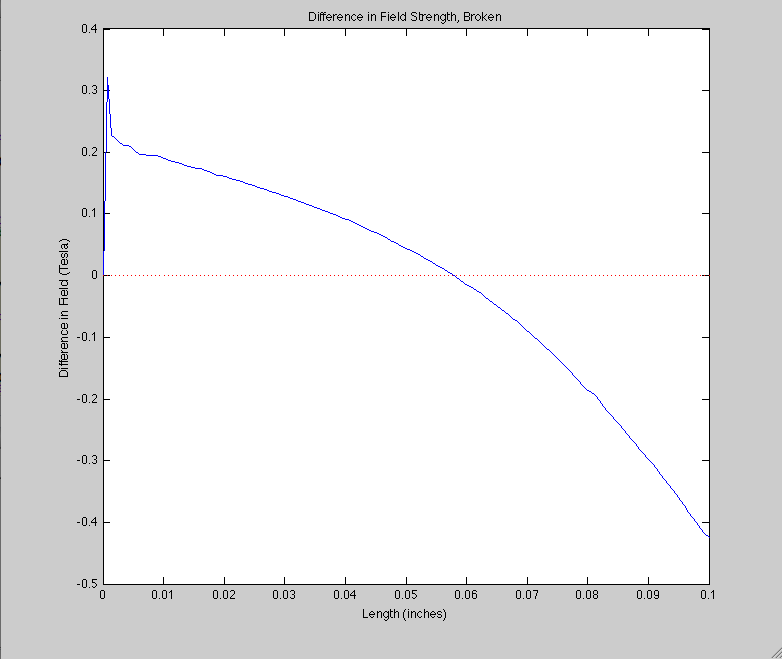

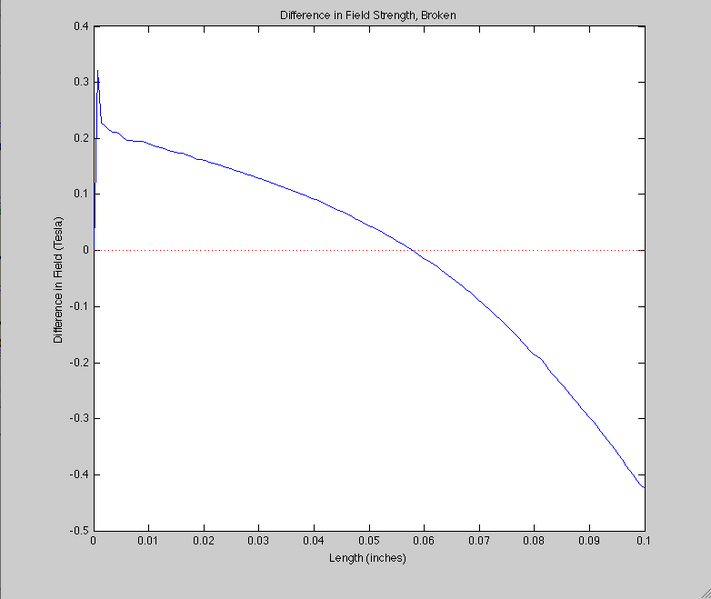

The difference in field between the "broken" yoke, and the complex yoke, over 0.1". For this graph, a positive value means that the "broken" yoke has a greater field intensity, as is the case for the for the area very close to the cone.
