Got liposomes from Bryant Yung of Dr. Lee's lab. Two tubes of:

  • QTCN: Quaternary-Tertiary Lipid Amine Cationic Nanoparticles (1 mg/mL)
  • SPLN: Small Peptide Lipid Nanoparticles (2 mg/mL)

Kept in 40% ethanol in 10 mM citric acid buffer (pH of 5). The lipid mixture is composed of DODAP, Lac-DOPE, DOPE, DMG-PEG, and with or without gramacidin A, at a molar ratio of 50:10:28:2:10 respectively.


Combine with DNA origami

  • Take lipid stock, combine with oligo at ratio of 1:15 DNA/lipid(weight/weight) in 10x transfection medium.
  • Set aside 10-15 min to allow for electrostatic interaction.
  • Dilute to final volume
  • Extrude through polycarbonate filter, or other sterile filter in general


Encapsulation Efficiency

  • Add 4 μL of 1mg/ml lipid (or 2μL of 2mg/ml conc.) to 10 μL of 245 ng of DNA origami in 10 mM citric buffer with 40% ethanol. Make two of these.
  • Also make two aliquots of 4 μL (or 2 ul) of lipid in 100 ul of FOBM16 with 5 nM staples present.
  • Allow to equilibrate for 15 minutes.

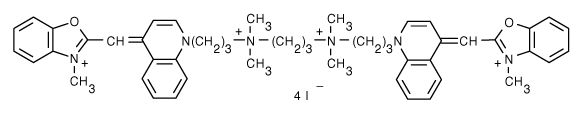

  • Add Yoyo1 at 10:1 base-pair/yoyo ratio. Since we're assuming 5 nM origami of 1450 base-pairs in 10 μL, then add 0.1450 nM of YOYO into solution.
  • Take Flourescence with 488 nm channel for step 1.
  • Add 2 ul of 0.1% igepal detergent to break up the liposomes. Make sure to pipet up and down to mix up the detergent.
  • Take Flourescence with 488 nm channel for step 2.
