  • Kolmar paper (1995)
    • explore ToxR using modular replacement of various substructures.
    • aa's 1-182 => cytosol. 183-198 => spans i.m. 199-210 => in periplasm, usually present in subsitutions. 211-294 => typical deletions when substituting other dimerizers.
      • address ToxR' as aa's 1-210
    • "aa's 183-198 is necassary but not sufficent for membrane localization
    • lots of crazy data!
      • ToxR'PhoA hella-trancribes.
      • ToxR'MalE hella-doesn't (MalE is sooooo monomeric ...)
      • ToxR'MalE/ZIP trancribes. (ZIP + magic makes MalE monomer homo-dimerize.)
  • ToxR/lambda phage
    • Background of lambda phage system:
      • Operator sites are OR1, OR2 and OR3 (i'll talk about only 2)
      • There is a cI "repressor" protein that sits on these sites. Also called lambda repressor
      • When OR1 and OR2 are integral number of turns apart (they are on same face of DNA)--> the cI repressors on both sites are able to bind to each other (act cooperatively) and fold the DNA --> no transcription occurs --> repression
      • When OR1 and OR2 are nonintegral turns apart (they face opposite sides of the DNA molecule) --> cI repressors on both sites face the opposite way and can't cooperate --> DNA stays linear and transcription occurs --> activation
      • The C-terminus of the cI repressor is responsible for cooperative interaction --> if you remove this piece, then no cooperation will happen even with OR1 and OR2 integral turns apart (thus no repression will happen)
    • Experiment:
  • They removed the lambda C-terminus, then they made fusion proteins with ToxR (now if any cooperation (i.e. repression) happens, it must be due to ToxR cooperating with another ToxR, cos cI can't cooperate without its C-terminus)

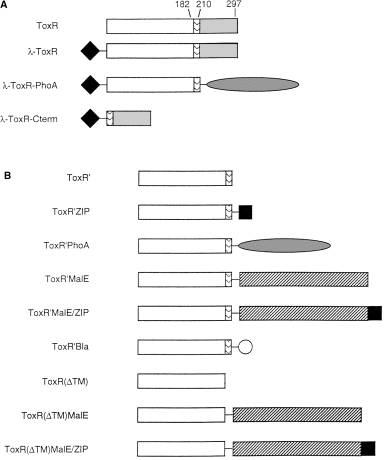

  • Fusion proteins made in this paper and in Kolmar et al. 1995 (click on picture to see caption)
Results (1x = background expression level)
Protein Strain 5.5 (nonintegral) Strain 5.9 (integral) Conclusion
wild-type lambda repressor 7x 1x Positive control (ensures that system works natively)
lambda-ToxR + ToxS 2x 1x Proves ToxR acts cooperatively (cos lambda C-term is not there, and therefore can't cause repression)
lambda-ToxR-PhoA 2.5x 1x Proves cytosplasmic domain (N-terminus) of ToxR is responsible for cooperative interaction

  • In V.cholerae, with only OR1 present, no dimerization occured (predictable as no two lambda sites are present, so no cooperative interaction can take place)
  • But with OR1OR2OR3 (i.e. all operator sites) present in V.cholerae:
Results (100 = full repression; 0 = no repression)
Protein pH 7.0 (permissive) pH 8.8 (restrictive) Conclusion
wild-type lambda repressor 100 100 repression of lacZ
no cI repressor 0 0 no repression of lacZ
lambda-ToxR + ToxS 89 81
lambda-ToxR 77 96 Proves cI::lacZ is unresponsive to pH changes in V.cholerae (but other exp show that the ctx is somehow still responsive)
lambda-ToxR-PhoA 71 80 Proves periplasmic sequences not essential for dimerization
lambda-ToxR-Cterm 23 9 No dimerization in absence of cytoplasmic domain
lambda-ToxR-Cterm + ToxS 85 80 ToxS promotes dimerization even in absence of cytoplasmic domain

  • Thus in V.cholerae, pH and osmolarity did not regulate cI::lacZ constructs, but they did continue to regulate ctx
  • Conflicting results: Otteman and Mekalanos (1995) saw ToxR dimerize when fused with periplasmic Bla (beta-lactamase), which is a monomer --> but now evidence that Bla may not act completely as a monomer
  • Monomeric MalE-ToxR results in no ctx::lacZ activity
  • References:
  • PhoA can be substituted for carboxy terminus (periplasmic) of ToxR (Dirita and Mekalanos, 1991)
  • ToxR sequences propagate dimerization of amino terminal domain of lambda phage (Dziejman and Mekalanos, 1994)
Yes No
ToxR needs dimerization Kolmar, 1995 Otteman and Mekalanos, 1995
ToxR needs to be membrane bound Otteman and Mekalanos, 1995 Kolmar, 1995

  • Co-regulation of cholera toxin genes
    • ToxR’s role is signal transduction through the membrane. It’s mechanism of action is thought to be the dimerization of ToxR (DiRita & Mekalanos, 1991). This mechanism of an extracellular protein causing a transmembrane protein to complex and activate transcription is fairly novel among bacterial transcriptional regulation systems.
    • Summary:
      • ToxR found in regulation of ctx operon (normally in Vibrio cholerae), which includes a gene for the toxin itself (ctx)
      • 3 regulator proteins are involved in the pathway:
        • ToxS: TM protein, only in periplasm
        • ToxR: TM protein, 1/3rd in periplasm, 2/3rds in cytoplasm
        • ToxT: inside cell (cytoplasm)
      • ToxS detects external environment (temp, pH, O2, osmolarity) via unknown mechanism. ToxR also does this in a limited way.
      • When activated, ToxS helps dimerize ToxR (mechanism does NOT include phosphorylation). ToxR's TM region winds up around each monomer (like a zipper)
      • When dimerized, ToxR's DNA binding domain causes transcription of ctx operon and also of ToxT gene
      • ToxT gene (along with ToxR) activates transcription of other proteins.
      • Structure of ToxR:
        • 294 aa (mw: 32,527 Da --> Miller et al. 1987)
        • Carboxy terminus: periplasm
        • Amino terminus: cytoplasm
        • TM region: Leu 183-Glu 198 (surrounded by Arg 182 on N-terminus and 3 uncharged aa on C terminus
        • Binding site known (Pfau & Taylor, 1996): TTTTGAT is tandemly repeated 8 times at -56 and once at -20 --> but these sequences are NOT enough! lacZ with these sequences will not produce B-gal.
  • Synthesis of cholera toxin is positively regulated at the transcriptional level by toxR.
    • 1984 paper, mostly stuff we know, but in being sensitive to manipulating cells that can have negative human affects: "Southern blot analysis suggests that all V. chokrae, including nontoxinogenic strains, have the toxR gene. Moreover, nontoxinogenic strains not only lack the structural genes for cholera toxin but also sequences associated with the larger 7-kilobase ctx genetic element." No, We Don't Have to Work With Virulent Cholera To Use ToxR.
  • Invivo evidence for TonB dimerization with ToxR
    • I've only read the abstract, but TonB is a protein on the surface of E.Coli
    • Dimerization of ToxR causes ctx to be produced. But in E.Coli, this dimerization is studied by placing a lacZ (or other reporter gene) under the ctx promoter. So we don't need to be concerned about virulence factors.
  • Co-ordinate expression of virulence genes by ToxR in Vibrio cholerae.
    • take home message: ToxR directly promotes some stuff (which includes production of ToxT). ToxT then directly promotes other stuff. ToxR can be a stand alone transcriptional factor.
  • Changes in the periplasmic linker and in the expression level affect the activity of ToxR and lambda-ToxR fusion proteins in Escherichia coli.
    • Only read the abstract
    • These guys used ToxR-lambda phage repressor as a dimerization reporter
    • they constructed plasmids for various transmembrane fusion proteins.
    • Current status: reading it to summarize
    • Uh oh, problem: this article says: "the authors suggested that dimerization is not a requirement for ToxR activity in E. coli 10. Someone should get on the referenced paper right now and find out why this is a problem.
      • best I can tell, the reference claims that the ToxR periplasmic domain could be replaced with a few other dimers and a toxR-like monomer. Further analysis showed that this substitution only sort of worked. The "correct" ToxR conformation may be more important for function says the paper. This point is worth remembering, but likely not a game-breaker. It may be necassary to eliminate the possible substitutions in lab, but it would be better to know if this study manipulated the toxR itself significantly to use these substitutions. I'm inclined to think they did manipulate the protein significantly...
  • The Vibrio cholerae ToxR-Regulated Porin OmpU Confers Resistance to Antimicrobial Peptides
    • i'm all about this paper for its reference list ...


  • What’s the distance b/t om and im? Distance of periplasm
  • A little about the conditions of periplasm --> stabilizing the linker
  • Characteristics of linker & why they are designed a specific way
  • IMPORTANT: Linker cannot contain seq. that signals inner membrane localization
  • Build our own linker library & screen
  • Look up other people who has built and screen linker similarly to the UCSF



  • Information
    • MCPs:
MCPs are primary receptors for amino acids and secondary receptors for other attractants. They're not involved in transport and their genes are within the tar and tapE genes or in tsr and trg in region II (region II and III are coding regions contain the motility and chemotaxis genes).
There are 4 types of MCPs.
1)tsr has tsrE and tsrS, primary receptor and transducer for Serine, external pH, weak acid repellents, temperature, hydrophobic amino acids, and indole.
2)tar has tarE and tarS, primary receptor and transducer for aspartate, Co ion, Ni ion; secondary receptor and transducer for maltose.
3)trg has trgE and trgS, receptor and transducer for ribose and galactose
4)tap has tapE, receptor for dipeptides
5)tip has tipS, mediates responds
    • Sensory transduction components:
Communication between MCP receptors/transducers and the motor is done through CheA, CheB, CheR, CheW, CheY, and CheZ. All fall in region II.
Motility genes: there are 2 involved - motA and motB

Chemosensory system

Chemotactic signals detected by chemoreceptors (methyl-accepting chemotaxis proteins - MCPs)
Through CheW, adapter protein, MCPs link to CheA and phosphorylate it
CheA-P phosphorylate either CheY or CheB
CheY-P binds to Flim and causes turning of ecoli
If [attractant] decreases, MCPs phosphorylate CheA --> CheA-P phosphorylates CheY: as [CheY-P] increases see cell tumbling
CheY-P dephosphorylated by CheZ: responds to increasing [CheY-P]
When CheY-dephosphorylated, Che-B phosphorylated by CheA-P: CheB-P demethylates MCP and resets the sensor of attractant
If [attractant] increases, CheA phosphorylation inhibited and [CheY-P] decreases and motor switching decreases: smooth swimming

Papers on Chemotaxis/Dimerization:

Receptor signaling: Dimerization and beyond


Role of alpha -Helical Coiled-coil Interactions in Receptor Dimerization, Signaling, and Adaptation during Bacterial Chemotaxis*

Activation of Bacterial Porin Gene Expression by a Chimeric Signal Transducer in Response to Aspartate

Dimerization is required for the activity of the protein histidine kinase CheA that mediates signal transduction in bacterial chemotaxis


CheA is the chemotaxis histidine protein kinase (HPK) however, it is cytoplasmic and senses through transmembrane receptors
The Chemoreceptors (MCPs)
Ecoli has 4 MCPs which form homodimers that are membrane spanning
Ligands bind to the periplasmic domain of MCPs between the 2 monomers of the dimer
Ligand binding alters the interactions between the periplasmic domains of the MCPs and change the interations in the MCP dimer
a 1.4Angstrom 'piston-like movement' of one of the helices
change of the periplasmic domains on ligand binding also alters the packing of the highly conserved cytoplasmic domains to cause signalling
signalling domain contains two adaptation regions
Tar recruits the methyltransferase CheR
it has been indicated in vivo that different receptors must be close enough to interact
Localization of methyl-accepting chemotaxis proteins
MCPs cluster in patches
MCPS might pack as trimers of dimers
Packing pattern would allow the necessary CheW and CheA interactions at the base of the MCPs
Receptors cluster are composed of signalling teams, a mixed trimers of MCP homodimers with different MCPs to regulate CheA
Max kinase activity seems to occur around 3.4 MCP to 1 CheW and 2 CheA
Variation in EColi
other MCP-like proteins exist: Aer--> senses for oxygen concentrations
Other Proteins in this pathway
CheW has 2 SH3 like subdomains and is both signallind for MCP and CheA
Forms the MCP-CheW-CheA complex
CheA works as a dimer
CheA shows increased autophosphorylation in response to a decrease in attractant binding or an increase in repellent binding
CheZ is a phosphatase and signal termination


e. coli

OmpR picture from 2004 UT project


Mammalian, S. Cerevisiae

Cytokines are small protein molecules that are the core of communication between immune system cells, and even between these cells and cells belonging to other tissue types. Cytokines act by binding to their cell-specific receptors. These receptors are located in the CELL MEMBRANE and each allows a distinct signal transduction cascade to start in the cell, that eventually will lead to biochemical and phenotypical changes in the target cell.

Most cytokine receptors lack intrinsic kinase activity. They are thought to transmit their regulatory signals primarily by the receptor-associated JAK (Janus kinase) family of tyrosine kinases. Ligand-binding to the receptor leads to JAK activation that phosphorylates cytoplasmic STAT (signal transducer and activator of transcription) proteins. Following phosphorylation on tyrosine residues, STATs are dimerized (resulting from phosphotyrosine - SH2 domain association). This dimerization is accompanied by translocation of STAT to the nucleus that results in DNA binding to specific response elements, and stimulation of gene transcription.





-"Gene FecA encodes the outer membrane receptor protein to which ferric citrate binds. Gene FecB encodes a periplasmic protein that serves as a binding protein for ferric citrate."
-"Ferric citrate protects the FecB protein from degradation by proteinase K, which implies that ferric citrate is takend up into the periplasm."
-"TonB, ExbB, and ExbD proteins are thought to serve as an energy-coupling device between the cytoplasmic membrane and the outer membrane." The electrochemical potential induces an energized TonB. TonB binds to FecA, causes dissociation of ferric citrate bound to FecA and opening FecA channel through which ferric citrate crosses the outer membrane and enters the periplasm."
-FecI helps recruits the RNA polymerase.
-Minimal requirements for induction of fecABCDE are: FecA, FecI, FecR, TonB, ExbB, and ExbD.
-The paper demonstrates that ferric citrate uptake into the periplasm is not required for fec gene induction.
-A table of fecA point mutants that uncouples induction and transport. Each mutant is grown in 1 mM and 10 mM citrate. Measurements of induction under 2 conditions Cit- and Cit+ and growth under each citrate concentration were taken. Mutated FecA proteins have the same size as the WT protein. Candidates that fit our purpose are fecA27, fecA4b, fecA30 and fecA38. fecA38 gives 5-fold higher induction than WT without growth and transport. fecA27 has the strongest induction but moves slower than the other FecA proteins, could be due to conformational change.
-The paper also has a mutant that bypass the repression of loaded Fur protein. fecA30 has a mutation in the promoter region of fecA that seems to be the binding site for the repressor protein.
-The authors hypothesized that the altered FecA proteins assume conformations which are close to the inducing conformation of WT FecA. FecA4 partially assumes a conformation which WT FecA4 adopts by interaction with TonB.
Summary: paper is about crystal structure of FecA protein done by X-ray crystallography
-Full length FecA (741aa) is composed of three domains - Beta-barrel,
-Beta-barrel is monomeric 22 stranded, formed by residues 222 to 741. Antiparallel strands traverse the outer membrane.
-Paper has topology and structure of FecA protein. Diagram on second page.
-Loops 3,5,7,8,9,10,11 were each deleted. Small loops 1,2,4,6 were untouched.
-Deletion of loops 7 & 8 give NO transport and induction activities. Loop 7 needs residues 516-135 for proper structure and function.
-Deletion of loops 3 & 11 INACTIVATES FecA.
-Deletion of loops 9 & 10 RETAINS activities.
-Point mutations in R365, R380, Q570 (binding sites for dinuclear ferric citrate) give NO activities. Point mutations in T138 and R438 give HALF of normal activities.
-R150,R196, E541, and E587 are residues that are at the interface b/t globular domain and Beta-barrel. Point mutations in E541R or E541A give almost normal induction adn transport. . Induction by point mutations individually and double mutations in other residues REDUCE activities.

Make FecA-

Enhanced levels of lambda Red-mediated recombinants in mismatch repair mutants


  • 2004 UT Texas Light Receptor Paper (conformation)
Overview of the System
Summary: They made a chimeric gene with Cph1 which responds to light and EnvZ which is already present in the OmpR regulatory system. This chimeric gene is regulated by light and its protein phosphorylates OmpR through a histidine kinase domain. The active form of OmpR then promotes the transcription of LacZ. Note that the conditions are: red light inhibits the transcription of the chimeric gene and no light/total darkness promotes it. This system is based on conformational change.
  • Antibody/receptor Chimera --> cross linking
  • Antibody outermembrane display in E.Coli
Antibody affinity maturation using bacterial surface display
Summary: N-terminus of high-affinity scFv specific for digoxin, derived from a well-characterized monoclonal antibody, is fused to a chimera termed Lpp-OmpA' that consists of E.Coli lipoprotein and aa sequence of OmpA. OmpA is a major outer membrane protein in E.Coli. A surface display vector is constructed with OmpA-VH-linker-VL under Promoter lpp/lac. The chloraphenicol acetyl transferase gene is introduced downstream of the scFv fragment. FACS is used to screen for cells with surface display. Gene fusion is done at DNA level.
