Starting from the top, we are assembling the first two fragments (K14070 and K14064) and K147002 with our oligos to add in a Dif site. Two dif sites on either side of resistance cassettes can be used to later excise antibiotic resistance from our final constructs.

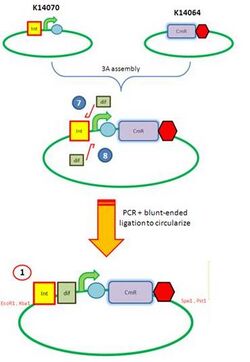

A : K143070 and K11064 assembly step
A : K143070 and K11064 assembly step
  • K14070 and K14064 fragments
- DNA was taken out of the reigstry
- Cut with restriction enzymes
- Run on a gel to confirm correct cutting
  and estimate relative ratios of DNA for ligation
- Ligated overnight
- Transformed into E.Coli to Amplify the DNA
- Colony PCR has been used to confirm the correct insert size.
  • Next Steps:
- Extract the DNA with a miniprep
- Proceed to the next step - Reverse PCR

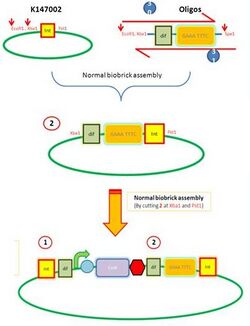

B : K14002 and oligo assembly
B : K14002 and oligo assembly






  • K14002 and oligos
- Ligated two single stranded oligos together to produce Dif and insertion site
- Standard biobrick assembly of oligos to K14002
- Ligation and transformation into E.coli competent cells (strain)
- Screen plated colonies for correct insertion
  • Next Steps
- Purify the correct insert out of E.coli
- Next step assembly - LacI test vector and Final assembly vector









Image:LacI testing construct
B2 : LacI Testing Vector
  • LacI Testing vector
- Currently waiting for Part B step 2 Midi-prep results to start this step
