A biomolecular breadboard is a system that is designed to allow certain features of a circuit to be tested in a carefully controlled setting. These breadboards can be used to implement, debug, and characterize a wide variety of circuits, including both in vivo and in vitro devices. This page contains an overview of different biomolecular breadboards that are available.

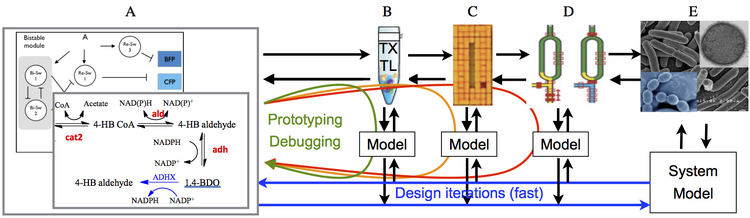

The figure below provides an overview of the basic breadboarding process. At the left is a circuit that we wish to implement and transform into a cell or other bimolecular chassis. Rather than try to directly get the circuit working in the cell, which requires time consuming iterations and difficult debugging, we instead use a sequence of simpler test environments ("breadboards"), where we can do much more rapid iterations between experiments, modeling and design.
Cell-free circuit breadboard
The cell-free circuit breadboard family is a collection of in vitro protocols that can be used to test transcription and translation (TX-TL) circuits in a set of systematically-constructed environments that explore different elements of the external conditions in which the circuits must operate. This breadboard is based on the work of Vincent Noireaux at U. Minnesota. The transcription and translation machineries are extracted from E. coli cells (Shin and Noireaux, 2010). The endogenous DNA and mRNA from the cells are eliminated during the preparation. The resulting protein synthesis machinery is used to program cell-free TX-TL gene circuits in reactions of 12uL. The gene circuits can engineered in the laboratory using standard molecular cloning techniques, but it is also possible to use PCR products (linear DNA), which substantially decreases the design cycle time.
- The cell-free expression breadboard uses the E. coli housekeeping transcriptional machinery (σ70 and core RNA polymerase) to express all the other transcription factors, therefore providing all of the E. coli DNA regulatory components.
- The reaction buffer is entirely custom-made from pure chemicals. The concentration of ATP and other nucleotides, ions, amino acids, molecular crowding agents, and other chemicals can be adjusted, as well as the pH of the reaction, over a wide range of concentrations.
- The breadboard can express proteins from either circular (plasmid) or linear DNA.
- No antibiotic resistance markers are required, allowing multiple plasmids with similar origins of replication to be included. The concentrations of different plasmids can be independently modulated.
- Approximate cost: $0.01/ul. Typical reactions are 12 ul ($0.126 per reaction)
Papers describing the use of the TX-TL breadboard:
- J. Shin and V. Noireaux, An E. coli cell-free expression toolbox: application to synthetic gene circuits and artificial cells. ACS Synthetic Biology, 1(1):29–41, 2012.
- Z. Z. Sun, C. A. Hayes, J. Shin, F. Caschera, R. M. Murray, V. Noireaux, Protocols for Implementing an Escherichia Coli Based TX-TL Cell-Free Expression System for Synthetic Biology. Journal of Visualized Experiments, 79; doi: 10.3791/507622013.
- Z. Z. Sun, E. Yeung, C. A. Hayes, V. Noireaux and Richard M. Murray, Linear DNA for rapid prototyping of synthetic biological circuits in an Escherichia coli based TX-TL cell-free system. ACS Synthetic Biology, 2013 (submitted).
- M. K. Takahashi, C. A. Hayes, J. Chappell, Z. Z. Sun, R. M. Murray, V. Noireaux, J. B. Lucks, Characterizing and Prototyping Genetic Networks with Cell-Free Transcription-Translation Reactions. Methods, 2015.
Artificial cell breadboard
The artificial cell breadboard family consists of phospholipid vesicles that contain the TX-TL cell-free expression system. Vesicles can range in size from 1 to 50 um in diameter. We have demonstrated the ability to implement TX-TL circuits in vesicles and to use external inducers that diffuse through the vesicle membrane to trigger reactions inside vesicles.
DNA origami breadboard
A third breadboard family that we are developing explores the role of spatial localization and single molecule effects. For this, we are using DNA origami to spatially organize, study, and optimize existing in vitro transcription circuits such as oscillators. There are two kinds of spatial organization that can be effected by DNA origami. The first kind of organization, local patterning is intrinsic to the DNA origami themselves. For example, a rectangular origami provides a roughly 100~nm x 70~nm surface onto which other molecules can be positioned with a resolution of about 6 nanometers.
A second kind of spatial organization afforded by DNA orgami is that of global placement. We are developing a method for placing individual DNA origami at lithographically-patterned sites on a silicon dioxide surface: sticky patches in the shape of DNA origami are created by e-beam, origami are washed over the surface, and they bind and orient on the sticky patches. Because of the regular placement of origami, we expect to eventually be able to observe up to 1600 (40 x 40) origami localized circuits in parallel to achieve good statistics.
TX-TL modeling library
Although not strictly breadboard, we are also developing a modeling library that is a companion to the breadboards above and allows simulation of circuits, including effects of resource limits.
