ABSTRACT

A mussel exhibiting adhesion to a surface
A mussel exhibiting adhesion to a surface

Within the foot of the blue mussel there are five mussel proteins that vary by amount. This varying amount is caused by the differing amounts of DOPA present within the proteins. These proteins are what cause the adhesive properties present within a mussel. What we aimed to do is create a controllable configuration of cells so that adhesion to a surface can be easily toggled. By using a combination of the existing natural part Mussel Adhesive Protein Mgfp-1 and the pre-existing part Mefp-5 (that was bio-bricked and used by UC Berkeley) a unique bioadhesive that provides desirable adhesion properties can be created.








BACKGROUND

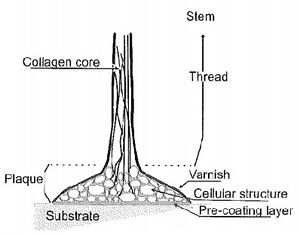

The foot of a mussel.
The foot of a mussel.

The inspiration for this project came from the blue mussel's (Mytilus edulis) ability to stick to surfaces. In order to attach to a surface they spin a set of threads from their stem that are able to attach to the surface via plaques. These plaques then connect the substrate and byssal thread. The strength of the adhesion in then determined by the amount of threads that are employed.

Bioadhesives are natural polymeric materials that many organisms, such as blue mussels aforementioned, use for their adhesive properties. Bioadhesives have been seen as an excellent alternative to human-made substances as they are very and durable in conjunction with being eco-friendly. In addition, they exhibit properties that allow them to be used in underwater and medical applications which is the main interest of this project.








PROOF OF CONCEPT DESIGN

New Natural Part
Mussel Adhesive Protein Mgfp-1 is our Natural Part

  • We are using it to test its ability to increase the adhesive properties of a substance to use as a glue in aqueous environments like in dentistry.
  • We found this part when searching for adhesive proteins from mussels and first found a trademark Cell-Tak who sold Mgfp-1 but from protein extraction methods. We then found that Idaho National Laboratory (INL) has a patent (number 6987170) and has sequenced the protein such that PCR reactions can mass produce it. Part of the sequence was copied from INL and then located in Genbank.


Creation of Primers
Forward Primer matches beginning of Mefp-1 protein sequence: ATGGAGGGAAATCAAATTA

  • Bio-brick prefix for primer that starts with ATG is: GAATTCGCGGCCGCTTCTAG
  • Gives full forward bio-brick primer: GAATTCGCGGCCGCTTCTAGATGGAGGGAAATCAAATTA

The end of the Mefp-1 protein sequence:TATCCATCACAATATTAA

  • Reverse primer:TTAATATTGTGATGGATA
  • Bio-brick suffix: TACTAGTAGCGGCCGCTGCAGCTGCA
  • Full reverse bio-brick primer: AAGGCTGCAGCGGCCGCTACTAGTTTAATATTGTGATGGATA


Note: potential problem with lack of CG clamp and low CG ratio

Key Pre-existing Part
We are also using Mefp-5 which has already been bio-bricked and used by UC Berkeley: 2009 and TU Delft: 2011.
It has been shown to function as a sticky adhesive and worked toward a couple products.
Using it in the product functions as a sort of control to verify testing procedures and we plan on evaluating the combined effect of Mefp-1 and Mefp-5.

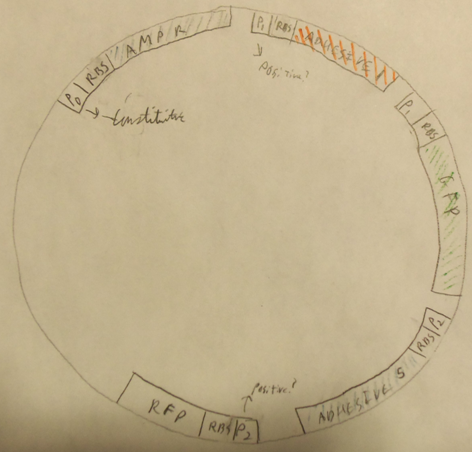

Assembly Scheme





TESTING

Measurement
We are measuring the adhesiveness of the glue by the amount of fluorescence observed. This gives us an easily visible measure of how strongly the glue is adhered. The fluorescence intensity will be verified against adhesive testing using an AFM cantilever. Furthermore, we have built in both green and red fluorescence with the green correlating to Mgfp-1 and red to Mgfp-5. This will allow us quantify the relative amounts of each protein and the effect on the adhesive power.


GFP is tied to Mfgp-1 expression and RFP is tied to Mgfp-5 expression.


Expected Observations

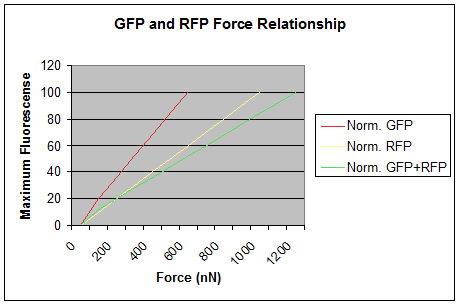

We expect to see a quasi-linear relationship between adhesive power and glowing intensity. This is because the GFP is being produced in the same plasmid cycle as the adhesive protein. The adhesive power could be monitored to support these conclusion through high cost equipment such as the AFM cantilever.



Tuning Our System

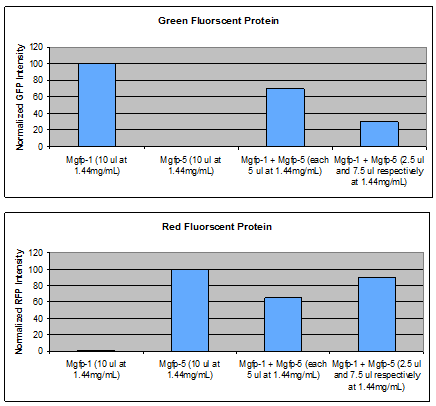

The system can be tuned by the relative amount of protein expression between Mgfp-1 and Mgfp-5. This tuning is evidenced in the above graphs as the relative amounts of protein are changed the GFP and RFP values have changed and resulted in a different net force of adhesion.



HUMAN PRACTICES

PETA Problems

  • Originally derived from sea mussels

If the bacteria somehow multiplied outside the intended region of interest it may be possible to accidently adhere things together

  • Ex: If used in dental implant—glue mouth shut!
