LAB 5 WRITE-UP

Background Information

SYBR Green Dye

SYBR Green Dye was the indicator used in this experiment. As it binds to DNA, it emits green light clearly when introduced to double-stranded DNA. However, when in the presence of single strands of DNA, RNA, or water, SYBR Green I glows significantly weaker or not at all.


Single-Drop Fluorimeter

A single-drop fluorimeter was the device used in this experiment. It measures the emission of light; in this experiment, it was used to determine the emission of green light from SYBR Green I. The value of the emission is related to the amount of the florescent or the amount of material being identified. If the amount of florescent is identical between samples, then the value of the light emission between samples shows the proportionality of the material being identified. In this pursuit, the amount of SYBR Green I was identical between samples, and the single-drop fluorimeter was utilized to determine the presence of double-stranded DNA (as SYBR Green I glows brightly in double-stranded DNA as compared to other substances).


How the Fluorescence Technique Works

Spectrofluorometer is extremely flexible, providing continuous ranges of excitation and emission wavelength. The light from an excitation source passes through a filter or monochromatic, and strikes the sample. A proportion of the incident light is absorbed by the sample, and some of the molecules in the sample fluoresce. The fluorescent light is released in all directions.


Procedure

Smart Phone Camera Settings

  • Type of Smartphone: Apple iPhone 5S
    • Flash: OFF
    • ISO setting: Auto
    • White Balance: Auto
    • Exposure: Auto
    • Saturation: Auto
    • Contrast: Auto


Calibration

The iPhone was placed in the cradle for support, allowing the camera to point directly at the slide at a right angle. The height of the fluorimeter was adjusted accordingly to allow for the best angle for the test.

  • Distance between the smart phone cradle and drop = 6.5 cm

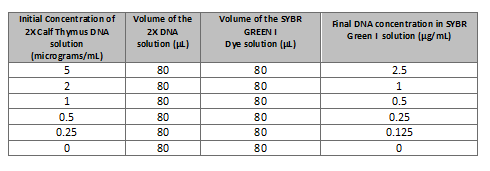

Solutions Used for Calibration



Placing Samples onto the Fluorimeter

  1. Step one consisted of setting up the camera in the cradle and aligning it at a certain length away from the light that shines on the drops of liquid on the slide.
  2. The second step was making sure all the samples were properly mixed into the different solutions.
  3. The third step was to place 80 micro liters on the slide with the rough hydrophobic side right in the middle of the beam or light.
  4. Step four was making sure to cover the sample and that no light was coming in and reaching the solution so the camera could take the picture of the sample. Steps 1-4 were repeated until all solutions were completed.


Data Analysis

Representative Images of Samples

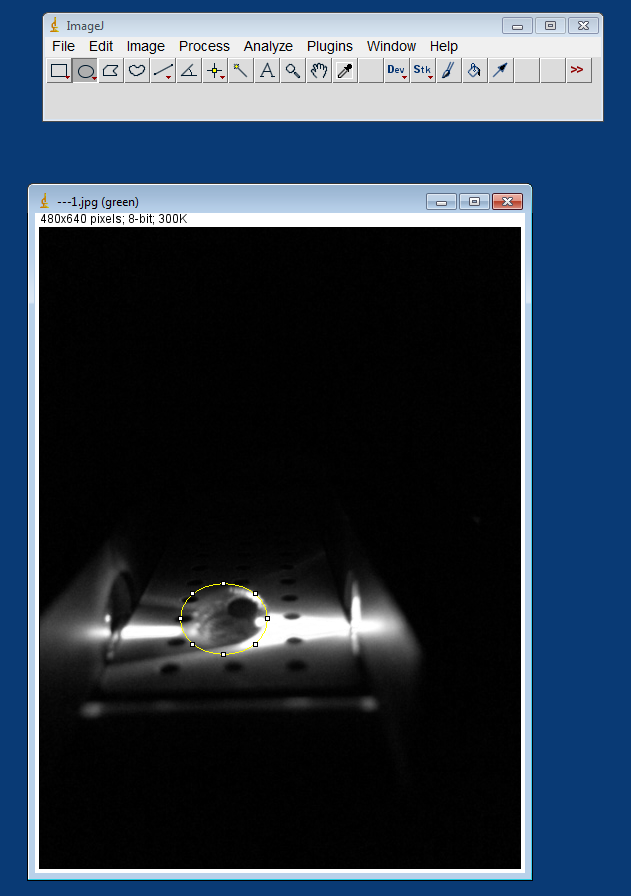

Sample with no DNA

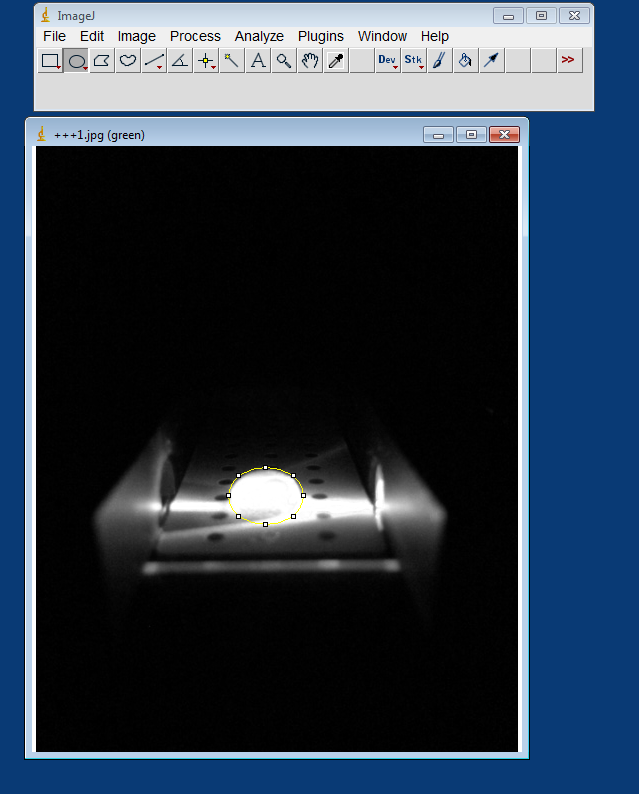

Sample with DNA




Image J Values for All Samples


Original Calibration

Final DNA Concentration RAWINTDEN of the Drop RAWINTDEN of the Background RAWINTDEN (drop) - RAWINTDEN (background)
034531330224315089
01805646007174557
0.2549114521842469303
0.2539724924163373086
0.542204921030401019
0.550845020911487539
160024028758571482
159194131183560758
263000434042595962
258111828959552159
566709046900620190
571179534870676925


Quick Calibration

Final DNA Concentration RAWINTDEN of the Drop
5959866
5889122
2408293
2829977
1356280
1658943


PCR Product Sample Measurements

PCR Product TUBE LABEL Volume of the DILUTED PCR Product solution (µL) Volume of the SYBR GREEN I Dye solution (µL) INTDENS VALUES BASED ON 3 SEPARATE DROP MEASUREMENTS ' ' AVERAGE INTDENS VALUE
1A8080256371412299165141154247
2A8080388143377660332221366008
3A8080238397188553437579288176.333
1B8080219121484088354011352406.6667
2B8080369201331460355380352013.6667
3B8080378003335356349226354195



Fitting a Straight Line

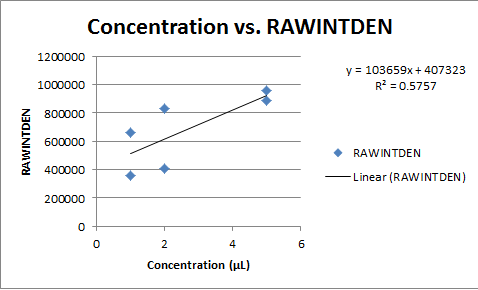

This graph represents the relationship between concentration and RAWINTDEN.


Image:Concentration vs RAWINTDEN graph.png


    1. Your positive control PCR result was 0.2306 μg/mL
    2. Your negative control PCR result was -0.066416 μg/mL


Write-in each patient ID and give both a qualitative (what the images looked like) and a quantitative description (μg/mL) of what you observed

    1. Patient 32298 : This patient did not produce a fluorescent light when the green dye solution was added to the slides. There was an average PCR product concentration of -0.11065 μg/mL.
    2. Patient 26685 : This patient also did not produce a fluorescent light when the green dye solution was added to the slides. There was an average PCR product concentration of -0.04375 μg/mL.

Compare each patient's results to the positive control value and the negative control value. Draw a final conclusion for each patient (positive or negative) and explain why you made that conclusion.

    1. Patient 32298 : After comparing the two controls, it can be concluded that Patient 32298 does not contain the DNA strand because the patient's PCR Concentration values were negative and close to that of the negative control value.
    2. Patient 26685 : After comparing the two controls, it can be concluded that Patient 26685 also does not contain the DNA strand because this patient's PCR Concentration values were also negative and close to that of the negative control value.
