LAB 5 WRITE-UP

Background Information

SYBR Green Dye
The SYBER I Green dye is used in this lab to visually detect amplified samples of DNA. SYBER green acts as a dye molecule that emits a florescent green color in the presence of double stranded DNA. To detect this light the sample is mixed with SYBER green and placed under a black box to block out interfering surrounding light. Then using a smartphone to take an image of the mixture the we can analyze the brightness of the dye and how much of the dye fluoresces to indicate the amount of DNA in the sample.


Single-Drop Fluorimeter
This lab uses a single drop fluoremeter device to detect DNA samples. This device consists of a sturdy outer cover which serves to block out interfering light sources so that the fluorescent light is more easily detected. We set up a phone cradle to secure the phone while it is taking pictures. Inside the device there is a platform for the slides to be placed on a surface designed to repel water so droplets on the slide maintain a spherical shape. Around the slide there is a LED light source which emits a blue light in order to clearly see the fluorescing dye.

How the Fluorescence Technique Works
The blue LED light shines on the sample underneath the black box, in the dark, and detects the different DNA concentrations. The samples are shown to have different DNA concentrations based on the amount of light that they fluoresce.



Procedure

Smart Phone Camera Settings

  • Type of Smartphone: iPhone 5C
    • Flash: None
    • ISO setting: Auto
    • White Balance: Auto
    • Exposure: Auto
    • Saturation: Auto
    • Contrast: Auto
  • Did not arrange the settings on the phone. But the lab manual says that this is acceptable because the camera is most likely sensitive enough.



Calibration

The phone is placed upright in the cradle with an eraser to help it stand straight. The cradle is moved about 6.5 cm away from the fluorimeter. This set up never moves once the experiment has begun.

  • Distance between the smart phone cradle and drop = 6.5 cm


Solutions Used for Calibration

row 1 cell 1 row 1 cell 2 row 1 cell 3 row 1 cell 4
row 2 cell 1 row 2 cell 2 row 2 cell 3 row 2 cell 4
row 3 cell 1 row 3 cell 2 row 3 cell 3 row 3 cell 4

Add more rows as needed


Placing Samples onto the Fluorimeter

 Step 1: Insert the slide, smooth side down
 Step 2: 80 milliliters of the SYBR GREEN on the first slide position
 Step 3: 80 milliliters of the calf thymus (water blank) on top of the "beach ball" of SYBR GREEN
 Step 4: Focus camera on the "beach ball", cover the fluorimeter with the black box, and take a picture in the dark
 Step 5: Repeat this process on different slide placements (at least three) for each sample.


Data Analysis

Representative Images of Samples

Image with No DNAImage:ImageJ with NO DNA.PNG

Image with DNAImage:ImageJ with DNA.PNG



Image J Values for All Samples

PCR Product Tube Label Diluted PCR Product solution volume (µL) SYBR Green 1 Dye solution volume (µL) INTDENS values INTDENS values INTDENS values Average INTDENS value
RJ18080925556370350NA647953
RJ2808080765526613081354746
RJ3808047062390695159445908
RJ4808054742317135890448786
RJ5808050946568505139053062
RJ6808058585576836583060699
RJ7808054772554699764359294
RJ8808056383543535747756071

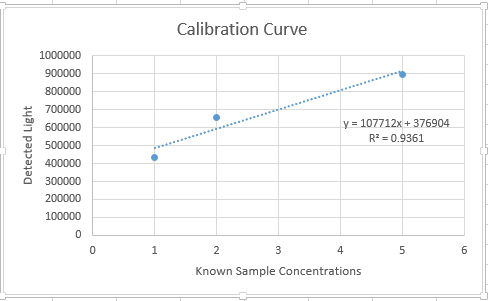

Fitting a Straight Line



PCR Results Summary

Our positive control PCR result was 30.20 μg/mL. Our negative control PCR result was -36.08 μg/mL

Patient 78086 : The images of the three samples of DNA given from Patient 78086 were without color. There was no sign of any SYBR Green 1 in all three images. The amount of corrected PCR product concentration was around -36 μg/mL. The exact values were: -35.89, -36.88 and -36.56 μg/mL.

Patient 32445 : The images of the three samples of DNA given from Patient 32445 were without color as well. Again there was no sign of any SYBR Green 1 in all three images. The amount of corrected PCR product concentration was around -35 μg/mL. The exact values were: -35.23, -35.38 and -35.74 μg/mL.

Patient 78086 : Negative. We were able to come to this conclusion based on the values of μg/mL for both the positive and negative controls. This patient's corrected PCR product concentration matched that of the negative control.

Patient 32445 : Negative. We were able to come to this conclusion based on the values of μg/mL for both the positive and negative controls. This patient's corrected PCR product concentration matched that of the negative control as well. We did not get confused on the results and assume that the results of the patients would be different. They in fact were very similar and we were able to successfully ascertain the desired result.
