LAB 5 WRITE-UP

Background Information

SYBR Green Dye

SYBR Green I is a fluorescent dye used for binding double-stranded DNA so that quantification and visualization is possible. SYBR Green is a synthetic, asymmetrical cyanine dye that was designed to work throughout a wide range of temperatures, bind in a way that does not interfere with enzymes such as DNA polymerases and nucleases, and accurately quantify DNA in varying concentrations. Real time PCR is the most common use for the dye, where the fluorescence increases as each PCR cycle amplifies the DNA so you can visually observe amplification.




Single-Drop Fluorimeter

The Single-Drop Fluorimeter is a device designed to help detect any presence of double stranded DNA in a liquid sample by measuring its fluorescence. It is essentially a small plastic device with a space on top for a multi-welled slide. The slide is illuminated by a single blue LED light which is turned on by a switch located on the right hand side of the Fluorimeter. The slide of the fluorometer is positioned so that the blue LED can iluminate any drop placed over a designated well.

The front top portion of the fluorimeter is shown. Illuminated droplet can be seen.




How the Fluorescence Technique Works

The fluorescence technique works by adding a fluorescent die to a liquid with an unknown percentage of double stranded DNA. The slides used in this analysis have a hydrophobic Teflon film on one side of the slide, designed to hold each sample in place. The film contains breaks which act as wells where liquids can be held in precise quantities. These breaks also keep each of the drops apart from one another so that the samples do not mix. All these traits make it easier to observe and analyze our samples when using the LED. When the samples are placed in the LED's range, any DNA stands at the top of the drop sized sample can be seen because the light causes them to fluoresce.



Procedure

Smart Phone Camera Settings

  • Type of Smartphone: Nokia Lumia 928
    • Flash: Off
    • ISO setting: 3200
    • White Balance: Auto
    • Exposure: 2
    • Saturation: N/A
    • Contrast: N/A


Calibration

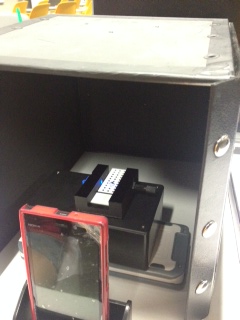

The camera was placed in a cradle that kept it upright and facing the fluorimeter from a side angle nearly edge-on. It was kept at a distance of 13 centimeters from cradle to the drop, which was chosen to keep the drop in focus for the camera and remained constant throughout the experiment. An eraser was placed in the cradle with the phone in order to keep it snug against the side and in a consistent position. It was also necessary for the fluorimeter to be raised to a height that was suitable for the height of the camera so it was placed on top of a calculator.


  • Distance between the smart phone cradle and drop = 13 centimeters


Solutions Used for Calibration

Initial Concentration of 2X Calf Thymus DNA Solution (μg/mL Volume of the 2X DNA solution (μL) Volume of the SYBR Green I Dye solution (μL) Final DNA concentration in SYBR Green I solution (μg/mL)
5 80 80 2.5
2 80 80 1
1 80 80 0.5
0.5 80 80 0.25
0.25 80 80 0.125
0 80 80 0


Placing Samples onto the Fluorimeter

  1. Place the slide, smooth side down, in the fluorimeter (make sure it's on).
  2. Check the height of the flourimeter and camera position.
  3. Pipet 80μL drop of the SYBR Green I solution between the first two clear circles in the middle of the slide.
  4. Pipet 80μL drop of the sample solution on top of the SYBR Green I drop.
  5. Move the slide so that the fluorimeter's light illuminates the center of the drop and focuses light on the other side.
  6. Place the lightbox over the setup with the flap still open and check the camera focus again.
  7. Take picture with the camera using a set timer with the lightbox flap down.
  8. Check the picture.
  9. Pipet the drop off of the slide and into the liquid waste container.
  10. Move the slide to the next set of clear circles in preparation for the next drop.
  11. Repeat steps until all slide positions have been used and then replace the slide with a new one.


Data Analysis

Representative Images of Samples

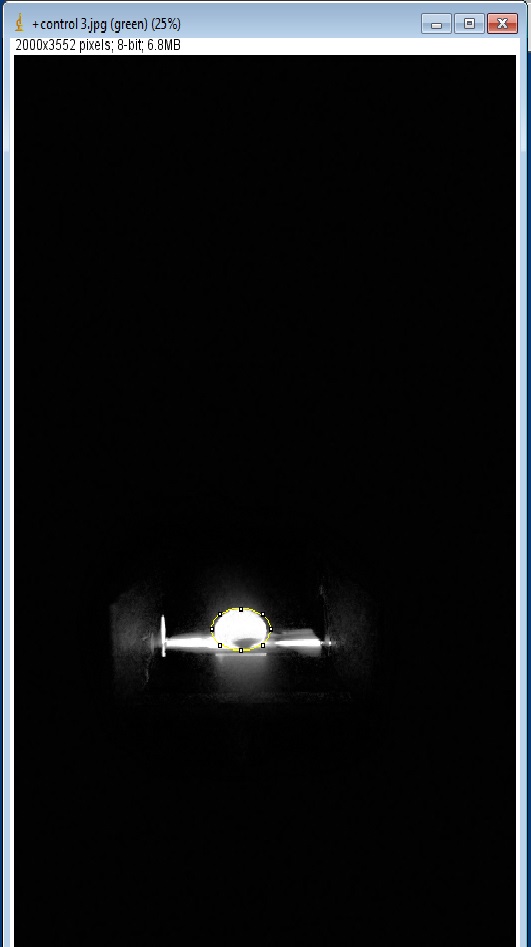

Sample with DNA (Positive Control)


Sample with no DNA (Negative Control)


Image J Values for All Samples

Set Area Mean IntDen drop Intden/area ' ' ' ' ' ' ' ' ' ' '
5404438708426215.3259155
1267003603137134.9489513
0.25318883904086122.4311967
Area 123Intden 123avg intdenintden/area 123avgPCR Product concentrationCorrected Concentration
control "+"2416433340327965935034573384962149415961274.667245.6147161171.9810738189.5030187202.36626954.35349731552.24196778
control "-"2796028148269522634292459406322438893157414.66794.21645207163.210991983.2550089113.5608176-0.146398904-1.75678685
A14301230232203648556840591628648222946431806.667198.9407607195.6961498236.8048517210.48058744.7646611357.17593356
A23190844900308046063436748039056704586404761.333190.0287075166.6011136184.0818725180.23723123.23218805238.78625662
A33390838724318685571646787353864767116640631.667164.3165625203.3245016203.2355655190.29220983.74168785644.90025427
B1220642010831680170148718837303583667238962877.1159807893.68062463113.120801894.63913573-1.105186941-13.26224329
B23033222200190162329264252709619373522264570.66776.79229856113.8331532101.88010197.50185089-0.960129167-11.52155
B32760820360237123234192217894943355903249577117.1469139107.0210707182.8437078135.67056420.97393281811.68719382
Patient A3.91284567946.95414815
Patient B-0.36379443-4.365533157


Fitting a Straight Line

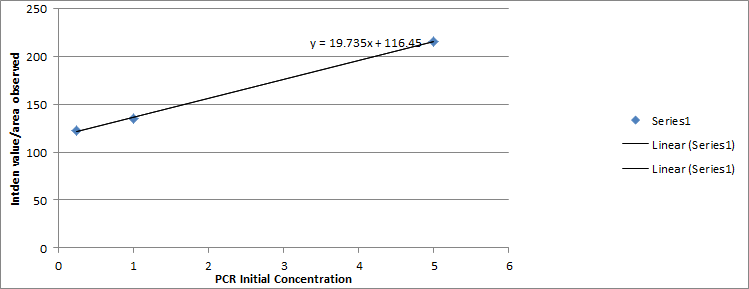

Image:Callibration Line.png



PCR Results Summary


Instructor's summary: You completed 8 PCR reactions in a previous lab. You used the SYBR Green I staining and imaging technique to measure the amount of amplified DNA in each PCR reaction. You used a standard curve (based on known concentration of calf thymus DNA) to convert INTDEN values into DNA concentration. Your positive control and negative control samples are used to determine the threshold values for determining whether an unknown (patient) sample is truly positive or negative.

Your positive control PCR result was 4.35 μg/mL

Your negative control PCR result was -0.146 μg/mL


and a quantitative description (μg/mL) of what you observed

Patient 10072: When DNA from this patient was combined with the SYBR green dye and viewed in the fluorimeter, it produced an average Intdens reading of 3.91 μg/mL

Patient 83576 : When DNA from this patient was combined with the SYBR green dye and viewed in the fluorimeter, it produced an average Intdens reading of -0.364 μg/mL

Compare each patient's results to the positive control value and the negative control value. Draw a final conclusion for each patient (positive or negative) and explain why you made that conclusion.

Patient 10072 : Each of the samples from this patient very closely resembled the positive control. All drops glowed bright fluorescent green in the fluorimeter. This patient appears to have tested positively for the gene of interest because the SYBR green dye was able to attach to double-stranded DNA molecules and fluoresce. Since the dye was able to do this, the PCR reactions must have produced many copies of the target strand of DNA, meaning it was present in the samples from this patient.

Patient 83576 : Each of the samples from this patient very closely resembled the negative control. None of the drops glowed or fluoresced when viewed in the fluorimeter. This patient appears to have tested negatively for the gene of interest because the SYBR green dye did not bind to any double-stranded DNA molecules to fluoresce. Since no double-stranded DNA molecules were produced in the PCR reaction, the patient did not have the target sequence of DNA.
