LAB 5 WRITE-UP

PCR Reaction Report

The pre-lab materials provided were helpful in terms of being able to complete the lab. The micropipetting video tutorial covered everything one needed to know about pipetting, and the examples of what not to do helped to understand how one mistake could lead to an error in our results. We learned that the first stop on the pipette is used to pick up the desired liquid and the the second stop is used to deposit the liquid into the desired location. At times, there was liquid left in the tubes. What we could have done to prevent this was set the pipette to a higher volume in order to ensure that all of the liquid was picked up. The labeling scheme we used was effective because it was simple, yet it was easy to detect which tube contained which solutions and when placed into the OpenPCR machine, it was easy to detect which tubes were ours.

Fluorimeter Procedure

Smart Phone Camera Settings

  • Type of Smartphone: IPhone 6
  • Flash: Off
  • ISO setting: Automatic
  • White Balance: Automatic
  • Exposure: Automatic
  • Saturation: Automatic
  • Contrast: Automatic

Camera Set Up

  • In order to set up the smart phone camera to accurately take a picture of the drop sideways, we vertically inserted the smart phone in a cradle. To stabilize the phone, we placed a plastic box underneath the cradle. To adjust the height of the fluorimeter, we also placed a plastic box under it. Then, we measured the distance between the smart phone cradle and the drop.
  • Distance between the smart phone cradle and drop: 8 centimeters

Placing Samples onto the Fluorimeter

  1. To calibrate the fluorimeter, use a micropipette to place 160 μL of water in the middle of the first two rows of the slide.
  2. Turn on the LED light on the fluorimeter. If needed, adjust the slide so that the light passes through the drop of water.
  3. Place the camera the distance that was measured above in order to focus the camera. In this case, 8 centimeters.
  4. Pick up the 160 μL of water with a micropipette and discard of it in the liquid waste cup.
  5. Place 80 μL of SYBR Green I in the middle of the second and third rows of the slide.
  6. On the same drop of SYBR Green I, place 80 μL of the first concentration of the calf thymus solution.
  7. Adjust the slide so that the light passes through the drop of water.
  8. Focus the smart phone camera. Make sure the timer is on for 3 seconds. Capture a picture of the drop. When pressing the capture button, quickly close the lid of the light box in order to remove as much stray light as possible.
  9. Repeat the previous step two more times in order to have a total of three pictures of the drop.
  10. Remove the light box carefully as to not move the phone cradle.
  11. Use the micropipette to remove the 160 μL of the solution. Dispose of it in the liquid waste cup.
  12. Repeat steps 5-11 with the remaining concentrations of the calf thymus DNA solution. Make sure to capture three pictures of each.
  13. To create the solutions that will be tested using the PCR reaction samples, transfer 100 μL from the PCR tubes into a 500 μL tube of buffer and invert the tube to mix it. Make sure to label the buffer tube with what PCR solution is being transferred into it.
  14. Repeat steps 5-11 to test the 8 tubes containing the buffer + PCR solution on the fluorimeter.

Data Collection and Analysis

Images of High, Low, and Zero Calf Thymus DNA

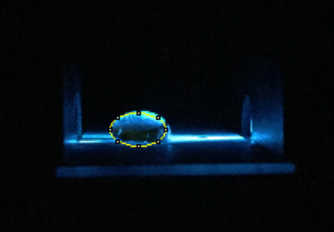

Zero DNA
Image:0 calf thymus.PNG

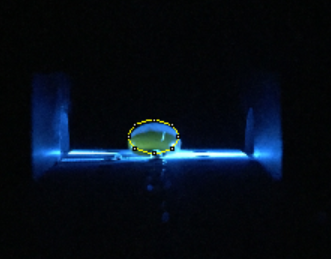

Low Concentration
Image:Low calf thymus concentration.PNG

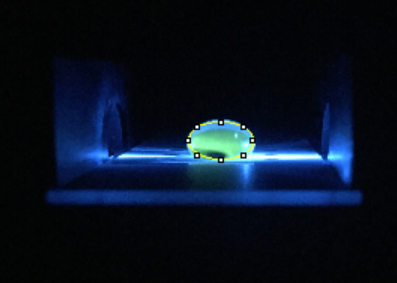

High Concentration
Image:High concentration.PNG
Calibrator Mean Values

Initial Concentration of 2X Calf Thymus DNA solution (micrograms/mL) Final DNA concentration in SYBR Green I solution (µg/mL) Sample Number RAWINTDEN DROP - BACKGROUND (Image 1) RAWINTDEN DROP - BACKGROUND (Image 2) RAWINTDEN DROP - BACKGROUND (Image 3) Mean Standard Deviation
5 2.5 C-1 5322561 5603115 5284249 5403308.333 174094.7454
2 1 C-2 3336421 3296463 2929210 3187364.667 224459.427
1 0.5 C-3 2909402 2510609 2819311 2746440.667 209144.7545
0.5 0.25 C-4 2361630 2034078 2466779 2287495.667 225675.5711
0.25 0.125 C-5 2358973 2158973 2180603 2232849.667 109760.1277
0 0 C-6 2017278 1958184 2053455 2009639 48092.6876

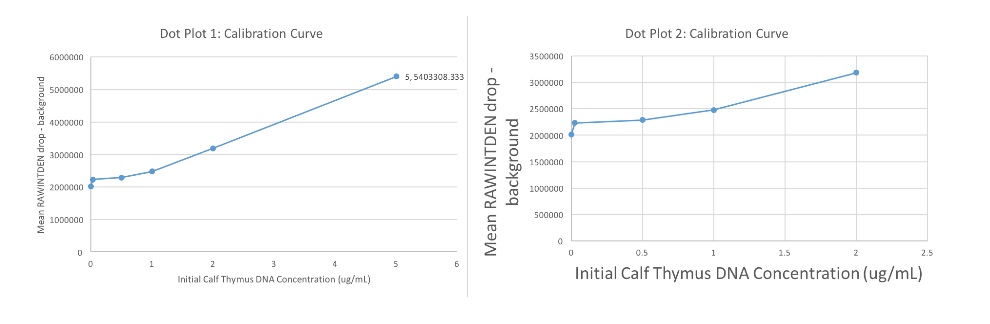

Calibration curves

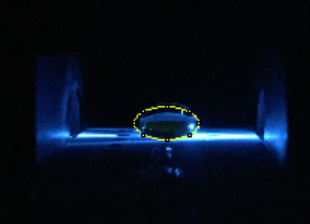

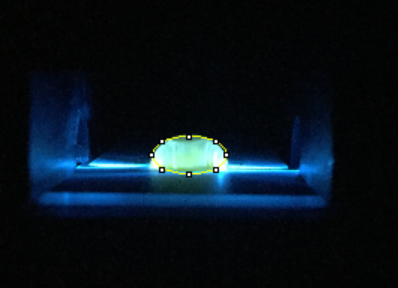

Images of Our PCR Negative and Positive Controls Negative
Positive


PCR Results: PCR concentrations solved

PCR Product TUBE LABEL MEAN (of RAWINTDEN DROP - BACKGROUND) PCR Product Concentration (µg /mL)(Step 5 calculation) Total Dilution Initial PCR Product Concentration (µg /mL)(Step 6 calculation)
G2 P 8048518.333 8.89 12 106.68
G2 N 940644 -1.56 12 -18.72
G2 1-1 2168998 0.248 12 2.976
G2 1-2 2429379 0.631 12 7.572
G2 1-3 3535750 2.26 12 27.12
G2 2-1 5043321 4.47 12 53.64
G2 2-2 6556006 6.64 12 79.68
G2 2-3 6488055 6.59 12 79.08

PCR Results: Summary

  • Our positive control PCR result was 8.89 μg/mL
  • Our negative control PCR result was -1.56 μg/mL


Observed results

  • Patient 63690 : The DNA was green and circular. The Initial PCR concentrations were closer to the positive control
  • Patient 22568 : The DNA was green and circular. The Initial PCR concentrations were closer to the negative control.


Conclusions

  • Patient 63690 : Positive because the majority of the initial PCR concentrations were closer to that of the positive control.
  • Patient 22568 : Negative because the majority of the initial PCR concentrations were closer to that of the negative control.
